The Boy • MSDPRO/CCT Integrated Flood/Wall Wash

The Boy • MSDPRO/CCT Integrated Flood/Wall Wash

MSDPRO Flood / Wall Wash

 • • COMING SOON, Q4 (Oct-Dec) • •

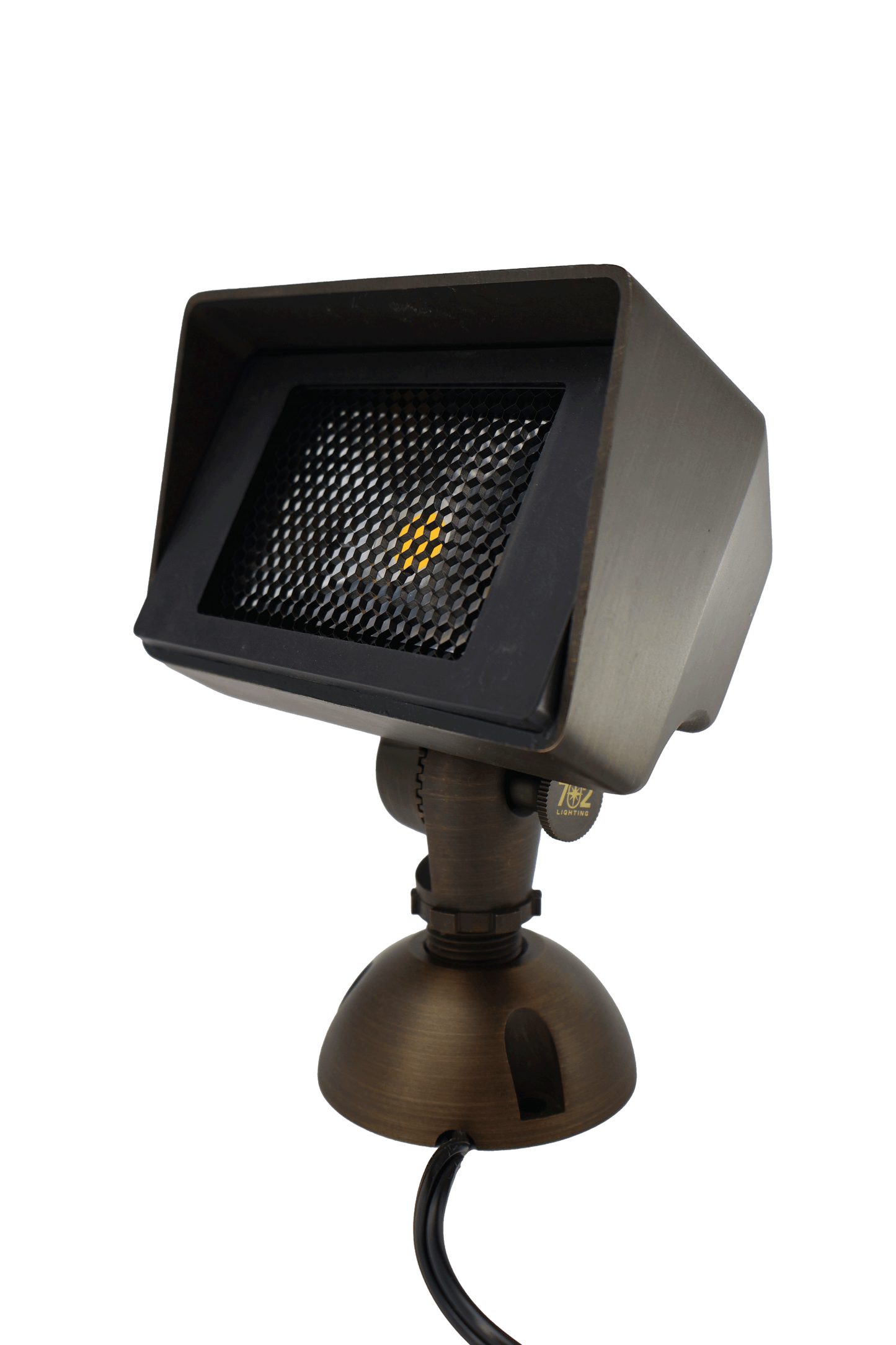

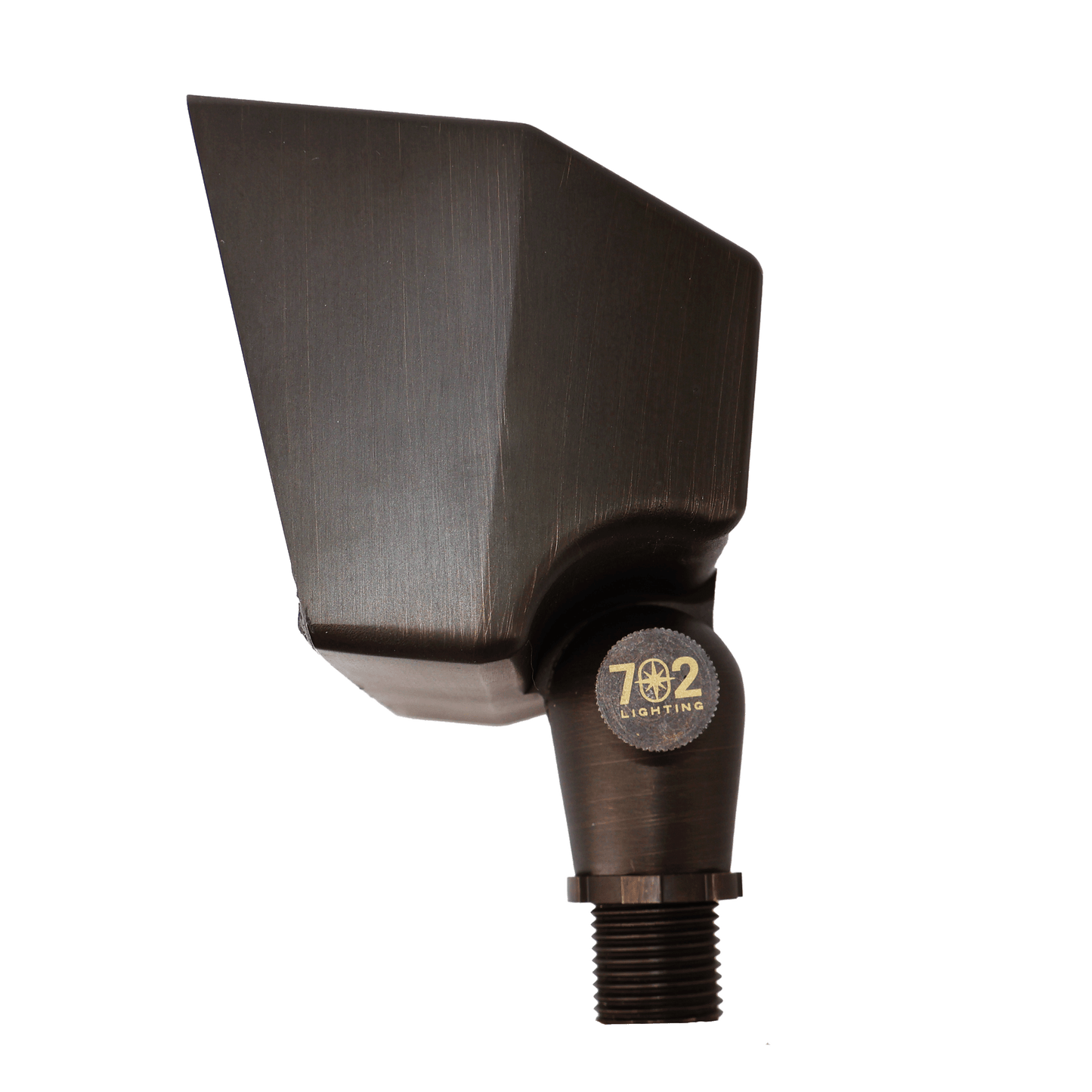

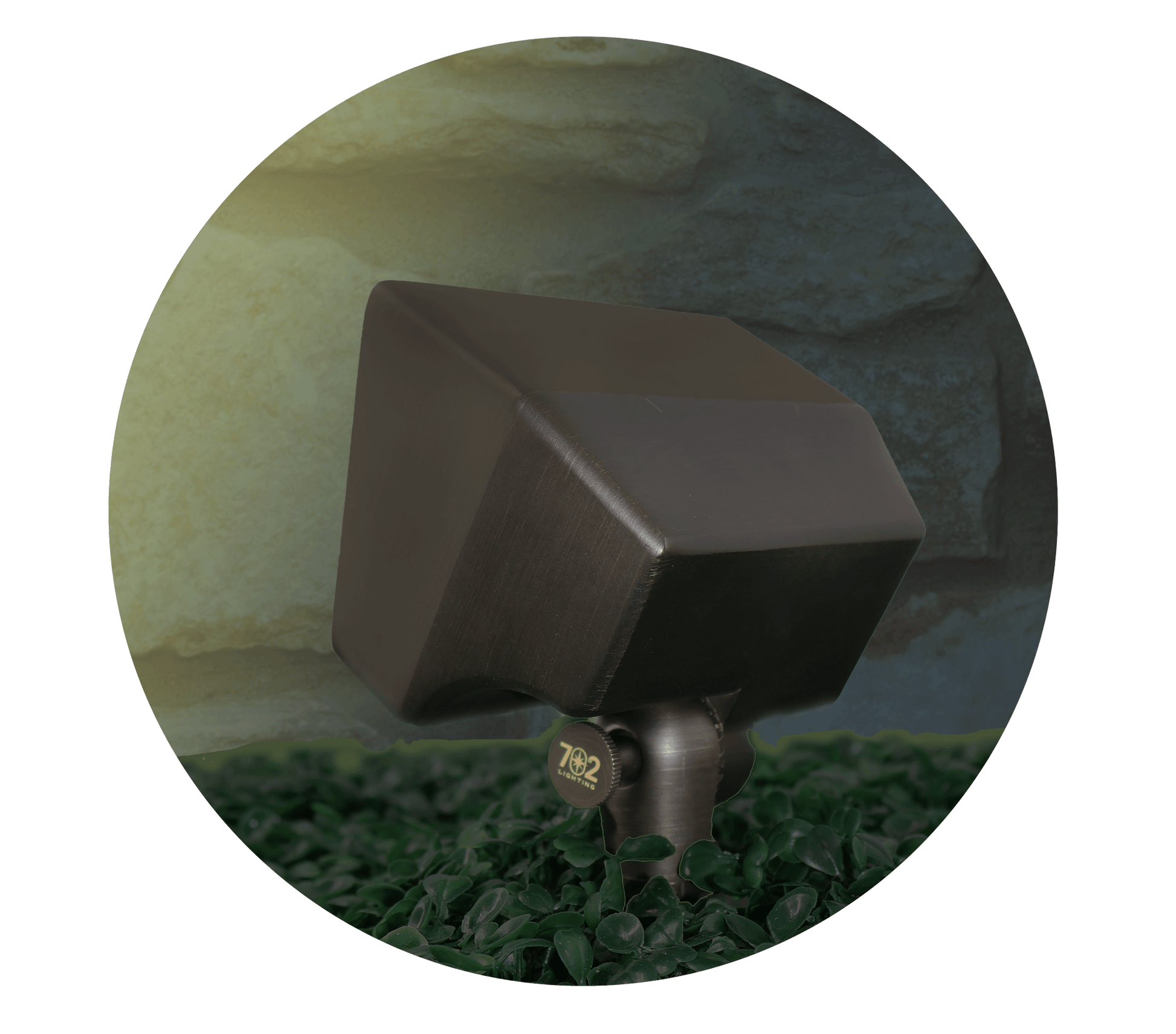

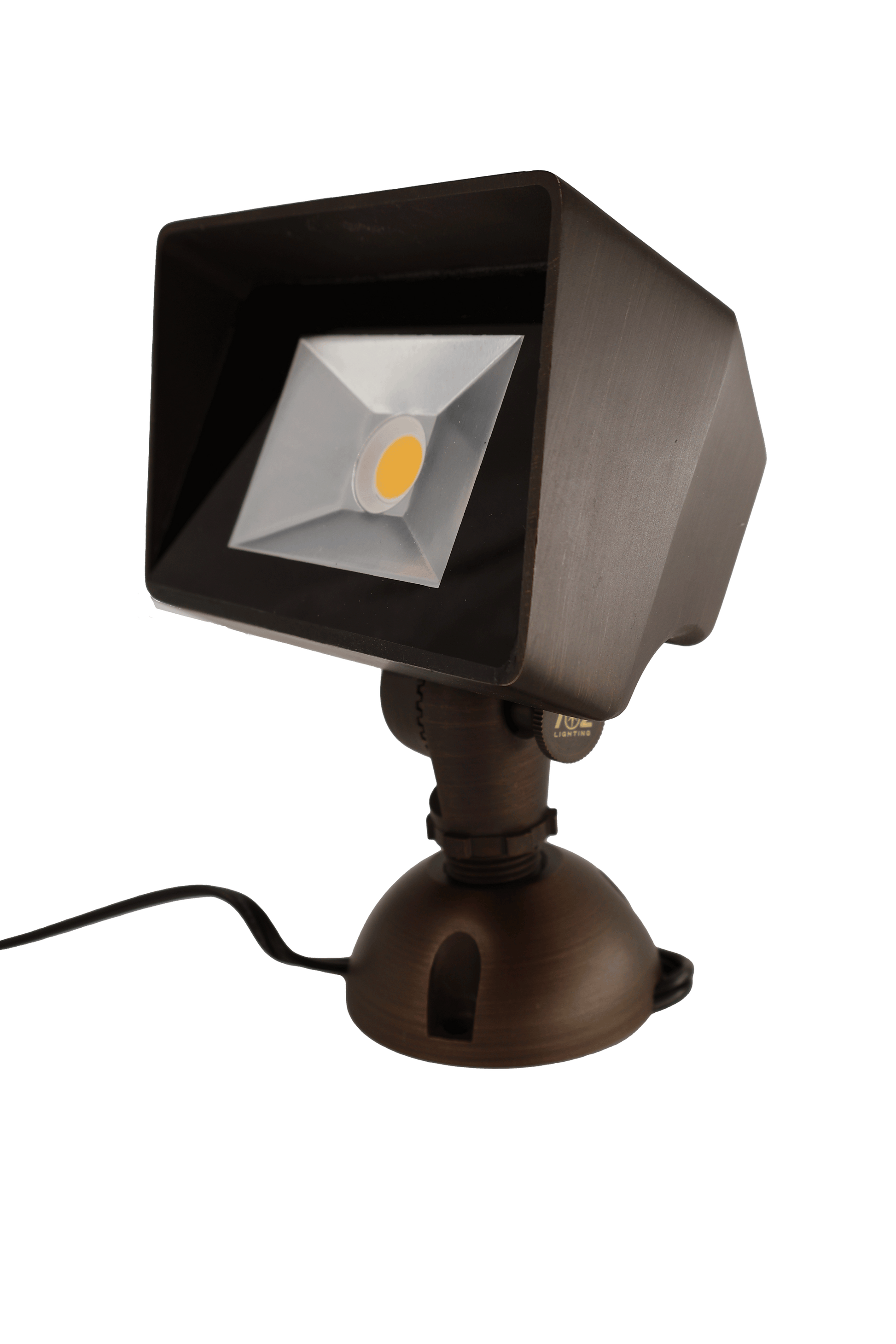

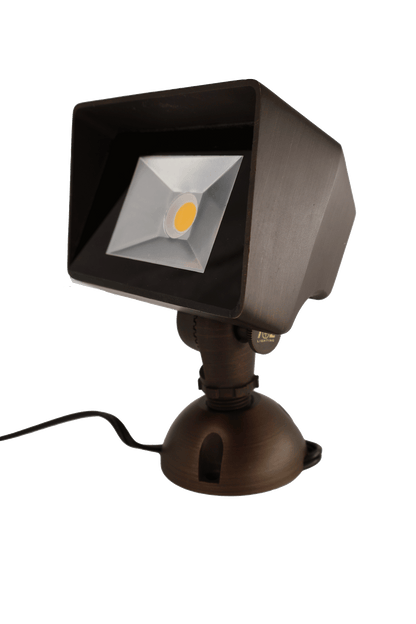

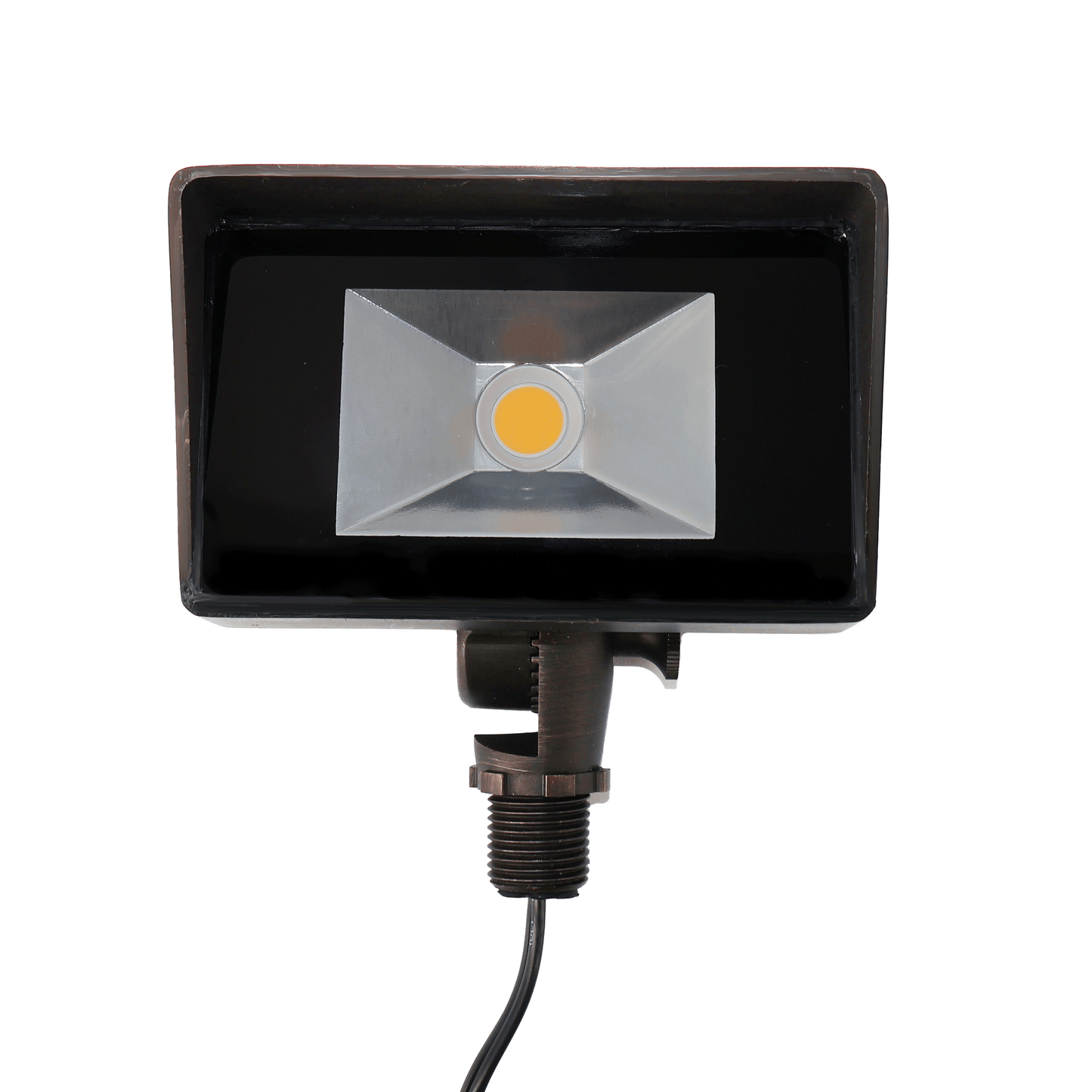

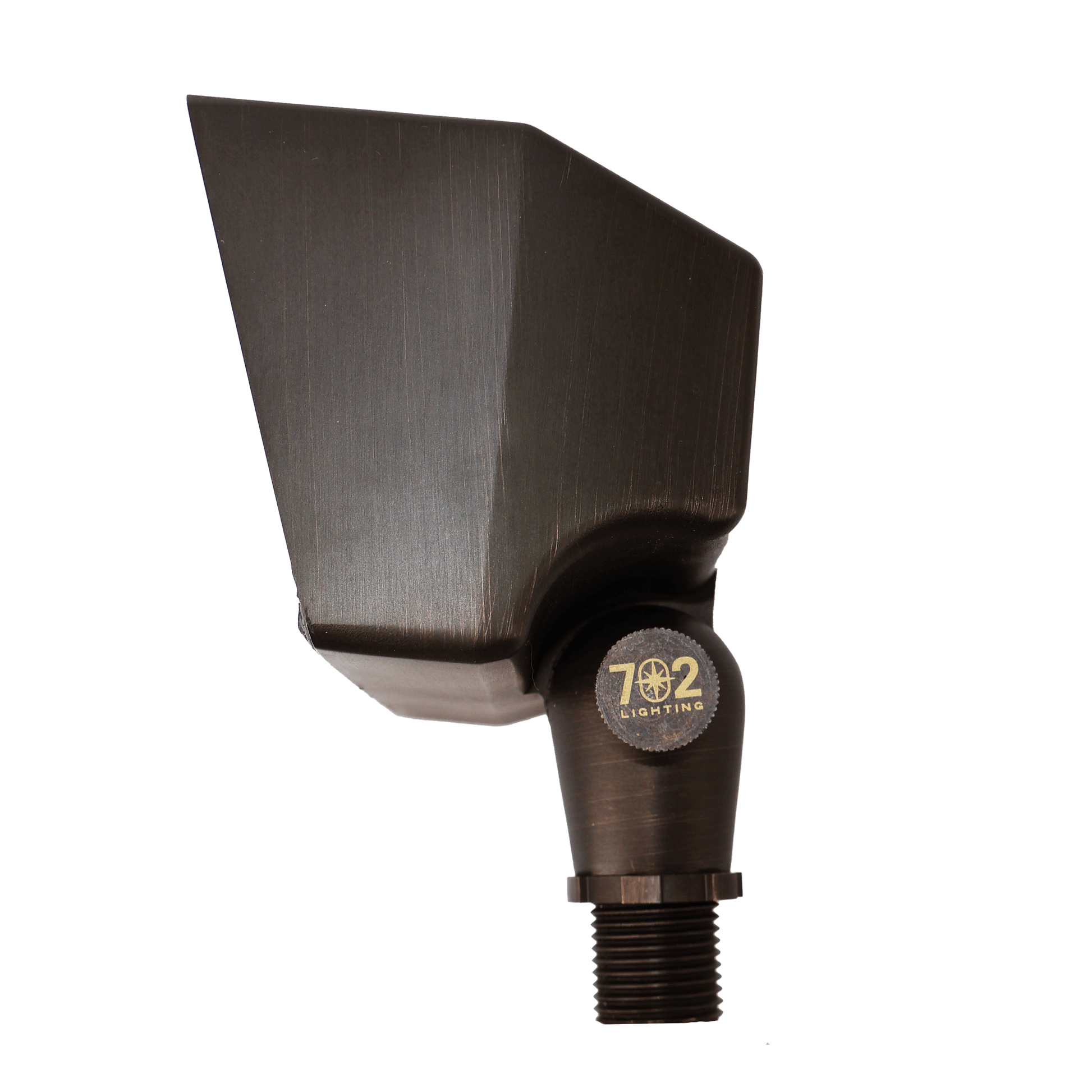

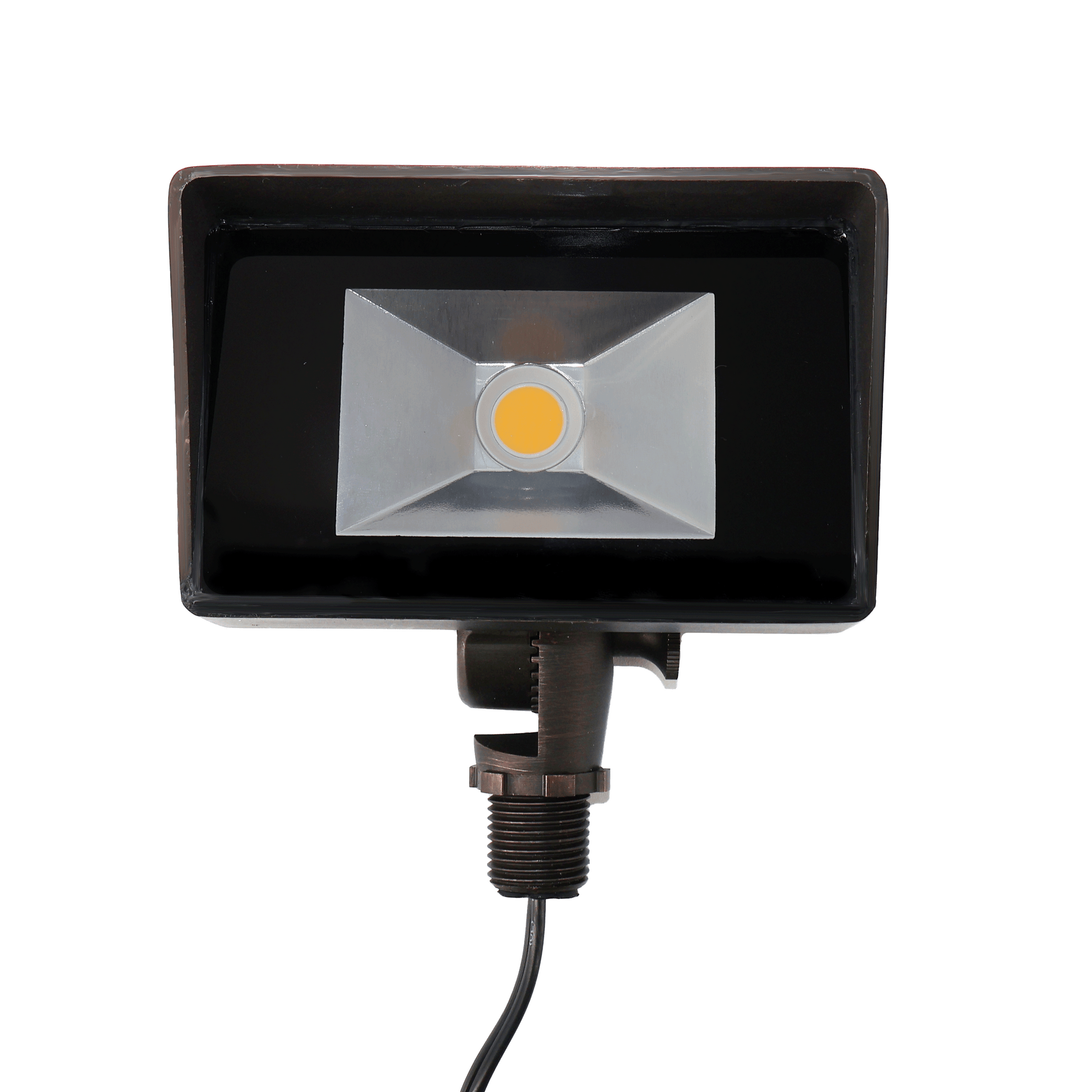

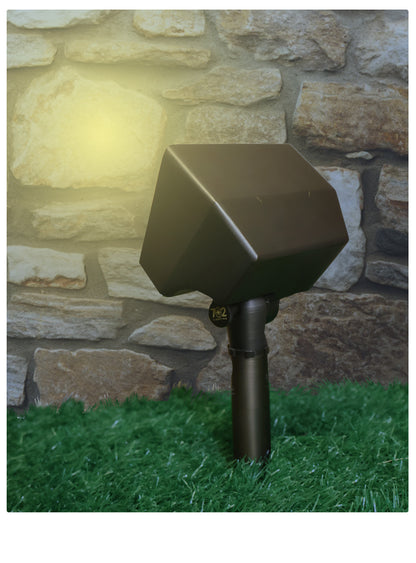

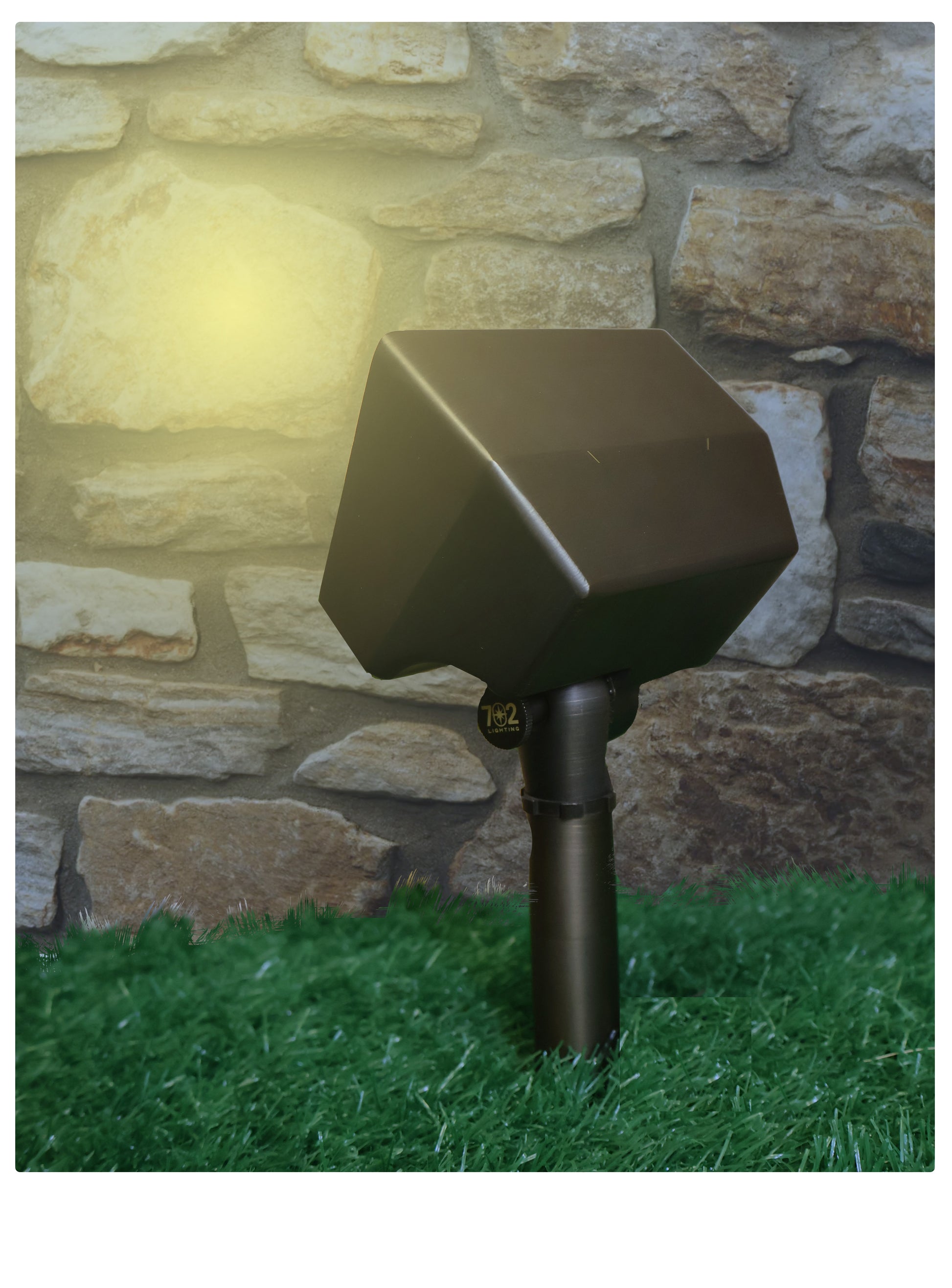

The Boy MSDPRO/CCT adjustable flood light and wall wash is made from solid die-cut brass. You can easily adjust wattage, lumen output and color temperature via patent-pending Magnetic Step Dimming (MSD) functionality. Using the provided magnetic-key, easily switch between four lumen outputs: 200lm, 400lm, 600lm, or 800lm and two color temperatures: 2700K or 3000K. The Boy Flood/Wall Wash is IP67 rated and includes an 8.75” ground stake. It also accepts 2 optional media (frost lens and/or hexcell louver).

Fixture comes preset to 6.5W, 3000Km 600lm

SKU: 702-FLOOD-MSDPRO-THEBOY-2700/3000-BS



Product Details:

  • Watts: 2W, 4W, 6.5W, or 8.5W
  • Volt Amps: 3.8VA, 6.6VA, 9.6VA, 12.5VA
  • Color Temperature: 2700K/3000K Adjustable
  • Operating Range: 9-15 VAC
  • Lumens: 200/400/600/800 lm
  • CRI: 80+
  • Lamp Life: 50,000 hours
  • Finish: Antique Brass

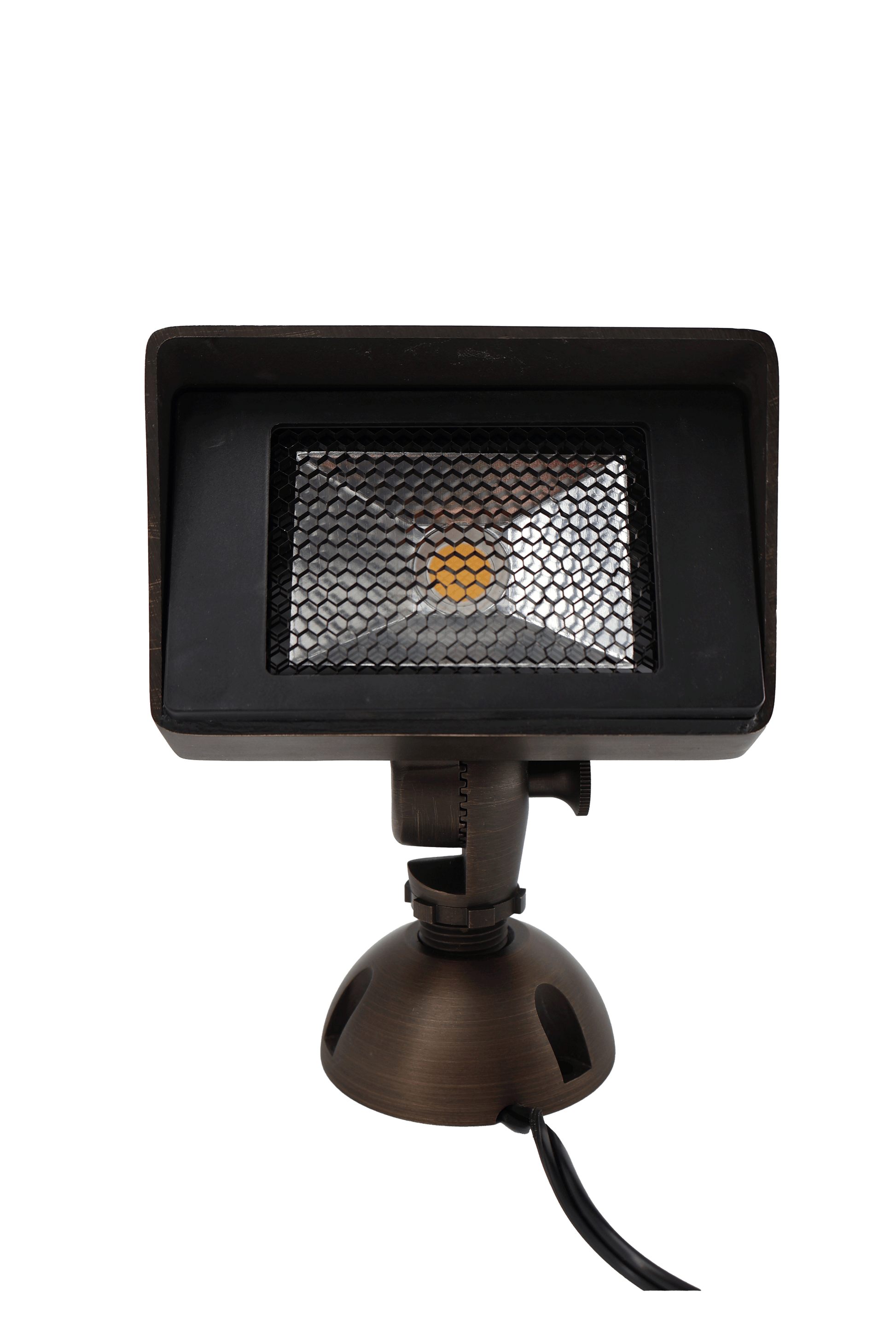

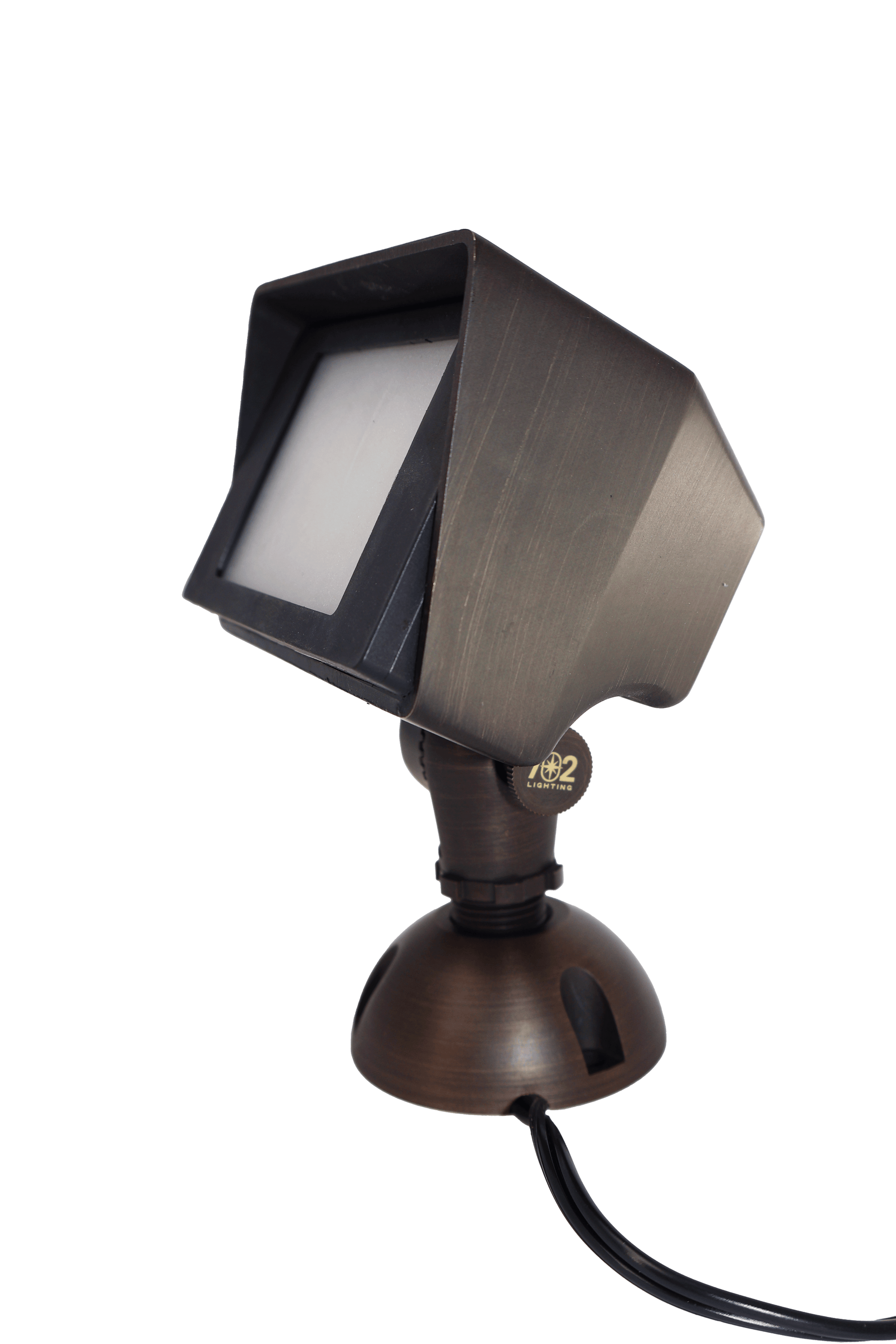

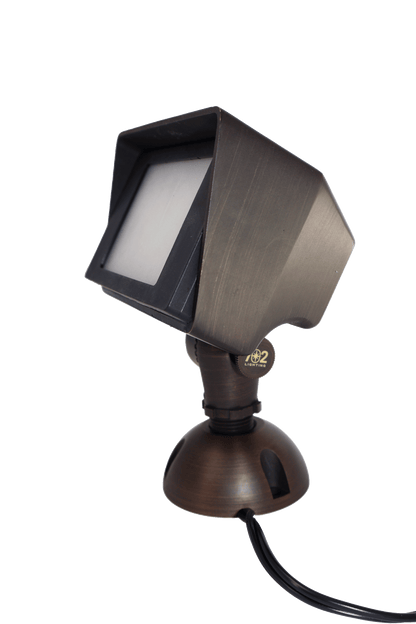

  • Accessories: Magnetic Frost Lens or Magnetic Hexcell Louver
View full details

More Product Information

  • Part number for ordering:

    FLOOD-MSDPRO-THEBOY-2700/3000-BS

  • Warranty:
    10 Years

    Dimensions • Weight

    4.8" L x 4.59" H • 3 lbs

  • Includes:

    1 MSDPRO/CCT Flood Light

    1 MSDPRO Magnetic Key

    1 Ground Stake (8.75")

    4.9' Lead Wire

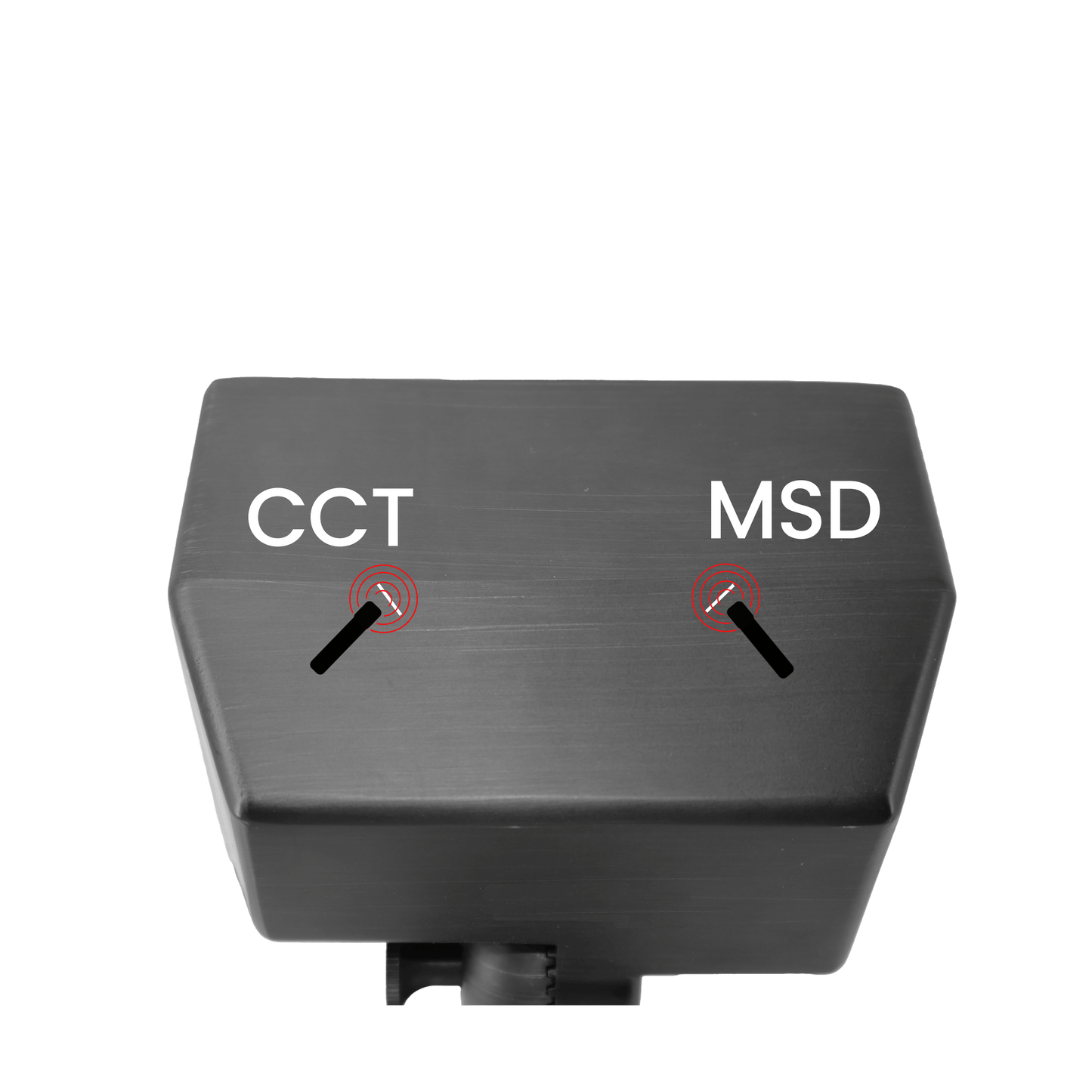

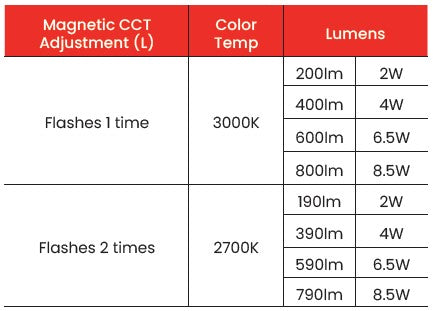

  • How to use Magnet to change CCT

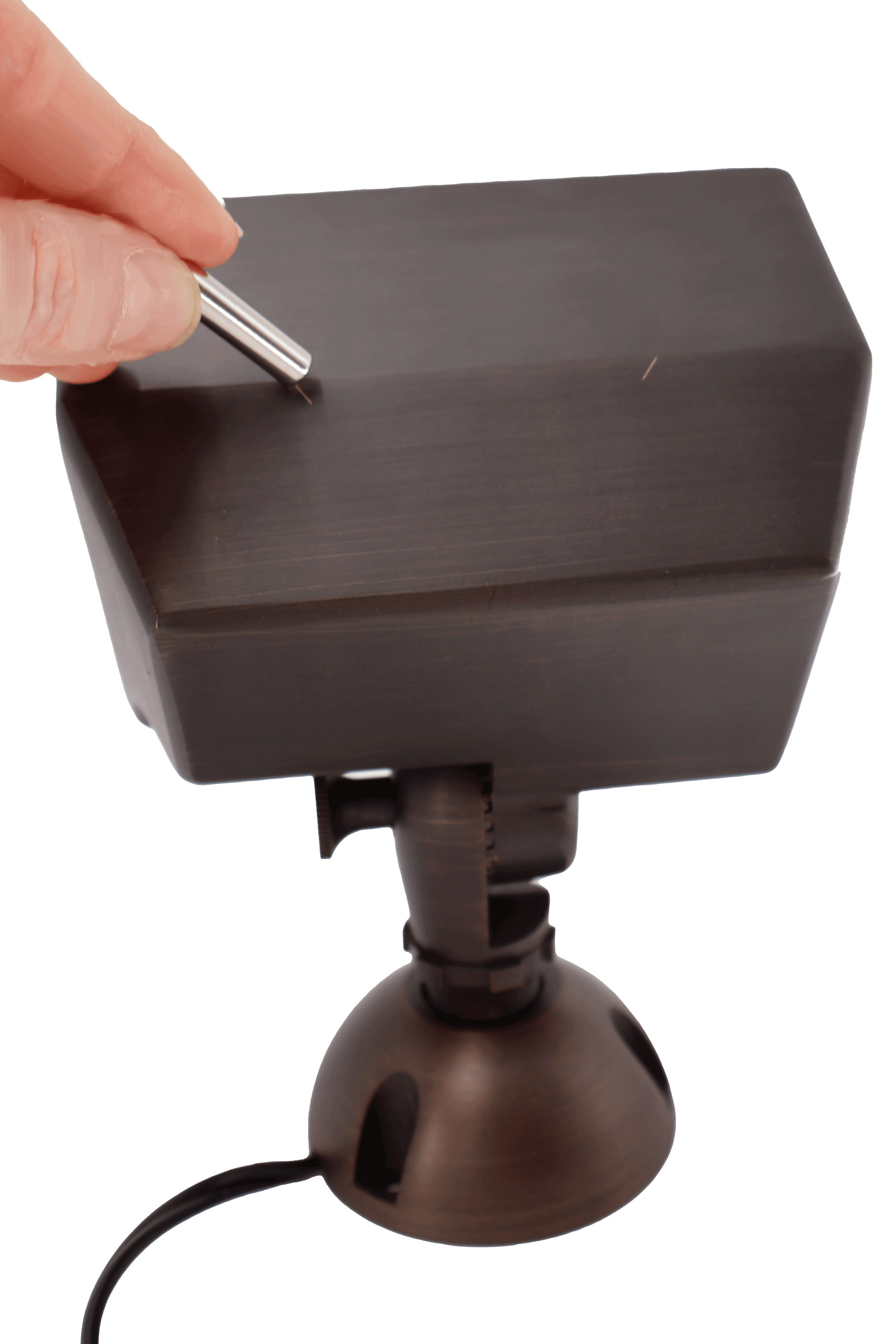

    To adjust color temperature, place the magnet on top of the etched line on the LEFT side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.

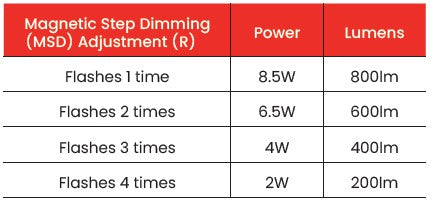

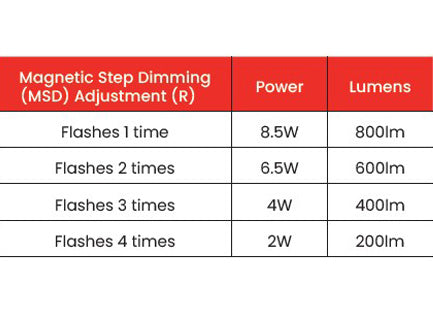

  • How to use Magentic Step Dimming to change your lumen output:

    To adjust lumens/wattage, place magnet on top of the etched line on the right side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
