• Medium MSDPRO / CCT Adjustable Brass Uplight • 13W, 2700/3000K • 20° Beam - MSDPRO Uplight from 702 Lighting in Las Vegas
1 5

702 Lighting

Small MSDPRO/CCT Accent • 7.5W, 2700/3000K, 200-600 lm

Small MSDPRO/CCT Accent • 7.5W, 2700/3000K, 200-600 lm

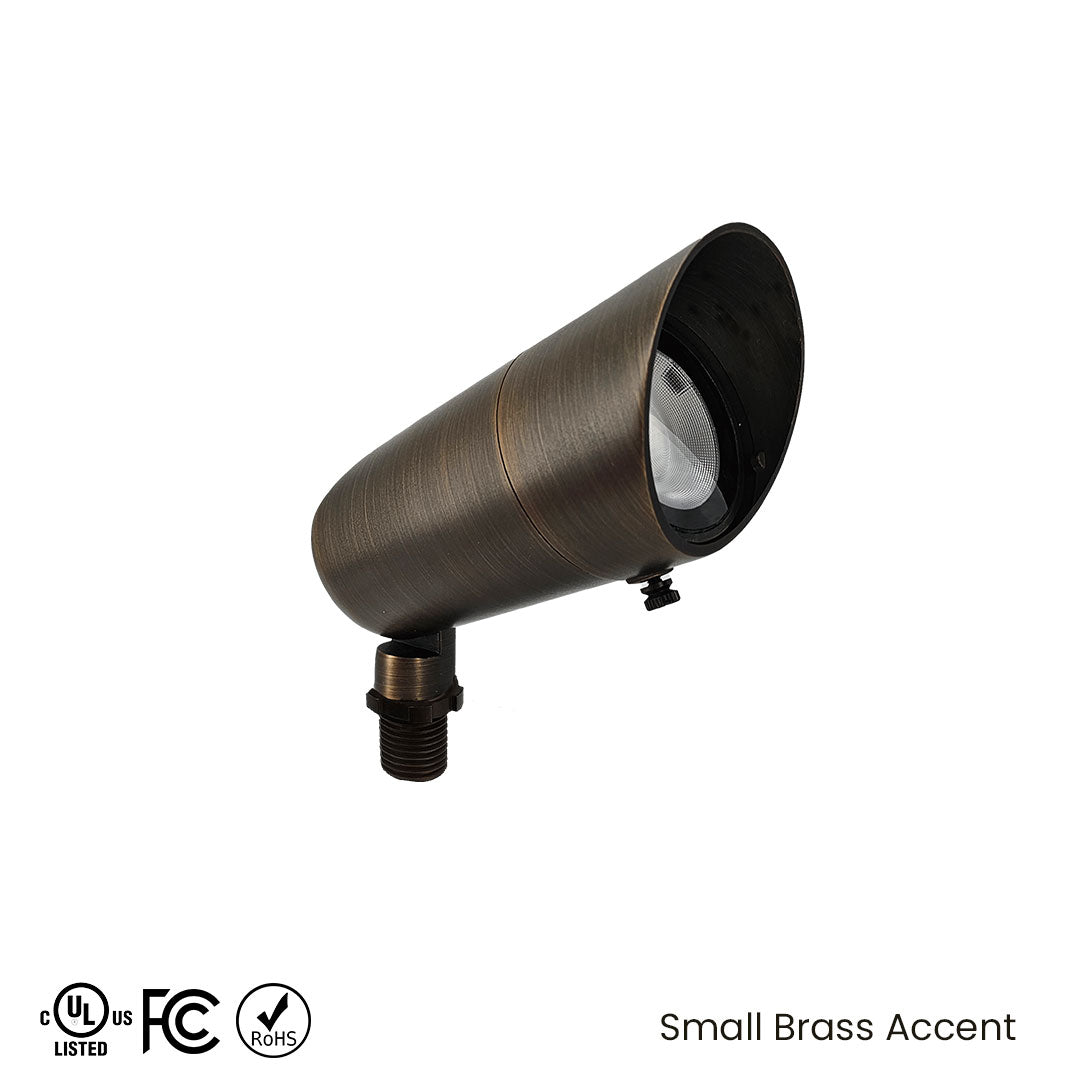

Small MSDPRO Accent Light

 • • COMING SOON, Q4 (Oct-Dec) • •

Small MSDPRO/CCT accent light made of solid die-cut brass. Adjust your wattage, lumen output and color temperature via patent-pending Magnetic Step Dimming (MSD) functionality. Using the provided magnetic-key, easily switch between three lumen outputs: 200lm, 400lm, or 600lm, and two color temperatures: 2700K or 3000K.  Available in three beam spread angles of 20°, 40° or 60°. IP67 rated. Comes standard with a 4.9 foot lead wire, MSDPRO magnetic-key, 8.75" ground stake and a 10 year manufacturer warranty.

Default Settings Out of Box: 7.5W, 600lm, 3000K

SKU: 702-ACCENT-MSDPRO-SMALL-2700/3000-XX-BS (XX - replace with beam spread)

CHOOSE YOUR BEAM SPREAD BELOW

Beam Spread
  • Beam Spreads: 20, 40 or 60 degrees
  • Watts: 2.5W, 5W or 7.5W
  • Volt Amps: 4.4 / 8 / 11.2 VA
  • Color Temperature: 2700K/3000K Adjustable
  • Operating Range: 9-15 VAC
  • Lumens: 200/400/600 lm
  • CRI: 80+
  • Lamp Life: 50,000 hours
  • Finish: Antique Brass
  • Accessories (Sold Separate): Frost Lens or Hexcell Louver
View full details

More Product Information

  • Listed or Registered with UL, FCC, RoHS

  • Warranty:
    10 Years

    Dimensions • Weight

    6.5" L x 4" H • 2 lbs

  • Includes:

    1 Medium MSDPRO/CCT Uplight

    1 MSDPRO Magnetic Key

    1 Ground Stake (8.75")

    4.9' Lead Wire

  • How to use Magnet to change CCT

    To adjust color temperature, place the magnet in the area just above the etched line on the LEFT side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • How to use Magentic Step Dimming to change your lamp wattage:

    To adjust wattage, place magnet in the area just above the etched line on the right side (with the fixture facing away from you)
    and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet

VIDEO: How to adjust Medium MSDPRO/CCT Accent Light
