MSDPRO / CCT Adjustable LED Path Light Module • 4000K/5000K
MSDPRO / CCT Adjustable LED Path Light Module • 4000K/5000K

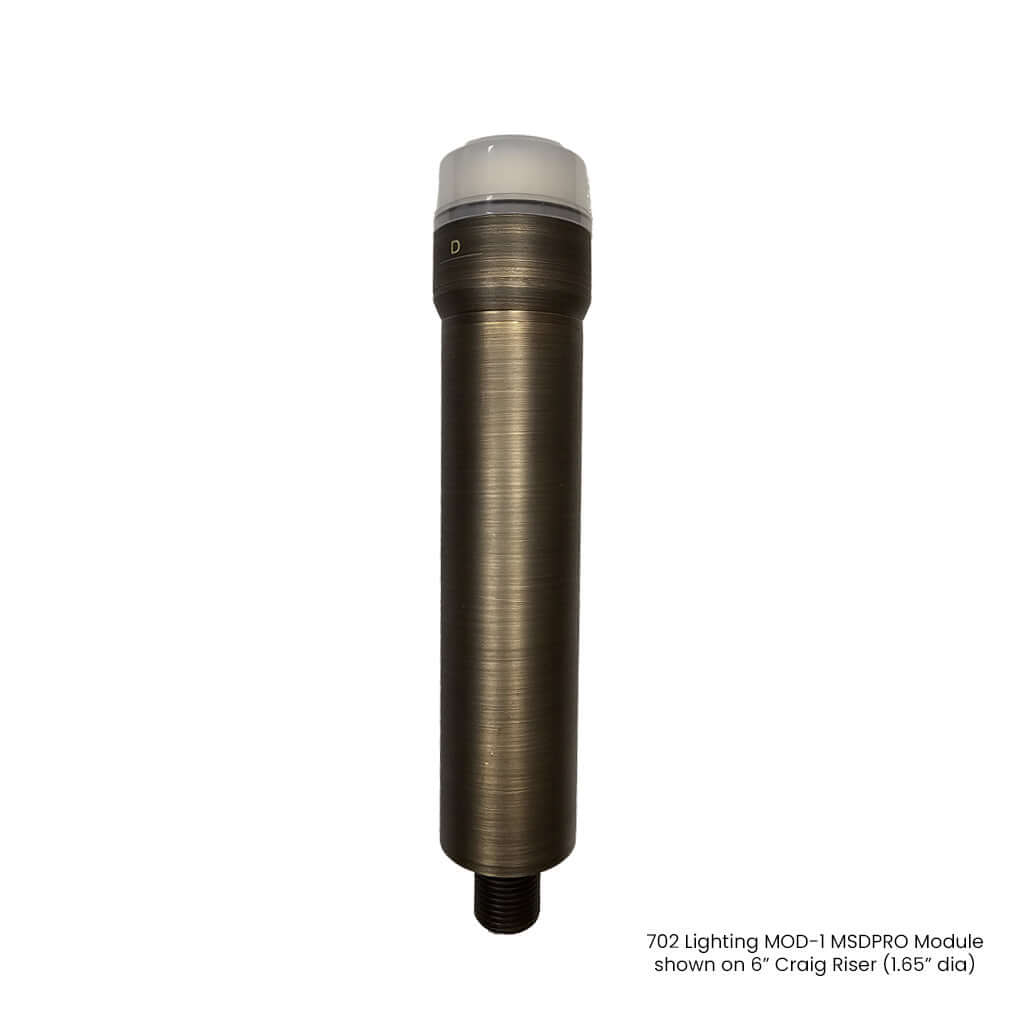

MSDPRO LED Path Light Module
MSDPRO/CCT adjustable integrated path light module with our patent-pending Magnetic Step Dimming (MSD) functionality that allows you to adjust your wattage/lumen outputs and adjust your color temperature output with the simple tap of a magnetic-key. No screws, no screwdrivers. Using the provided magnet, easily switch between three lumen outputs: 210m, 380lm, or 580lm, and two color temperatures: 4000K or 5000K. Provides a full 360° beam spread. Comes with 10 year manufacturer warranty.
Default Settings Out of Box: 4.5W, 5000K
SKU: 702-PATH-MSDPRO-MOD1-6W-4000/5000-BS
Looking for a complete path light kit? See Path Light Kits
More Product Information
-
Part number for ordering:
702-PATH-MSDPRO-MOD1-6W-4000/5000-BS
-
Warranty:
10 Year Manufacturer Warranty
-
Includes:
1 MSDPRO LED Path Light Module
1 MSDPRO Magnetic-Key
4.9' Lead Wire
1/2" NPT Male Thread
-
How to use Magnet to change CCT
To adjust color temperature, place the magnet just below the “C” found on the side of the module and hold for 1.5 seconds. Light will flash if successful.
To adjust again, repeat, pausing for 1.5 seconds in between settings.
-
How to use Magentic Step Dimming to change your lamp wattage:
To adjust wattage, place the magnet just below the “D” found on the side of the module and hold for 1.5 seconds. Light will flash if successful.
To adjust again, repeat, pausing for 1.5 seconds in between settings.
-
