Large MSDPRO / CCT Adjustable Brass Accent • 23W, 2700/3000K • 40° Beam

Large MSDPRO / CCT Adjustable Brass Accent • 23W, 2700/3000K • 40° Beam

Large MSDPRO Accent Light

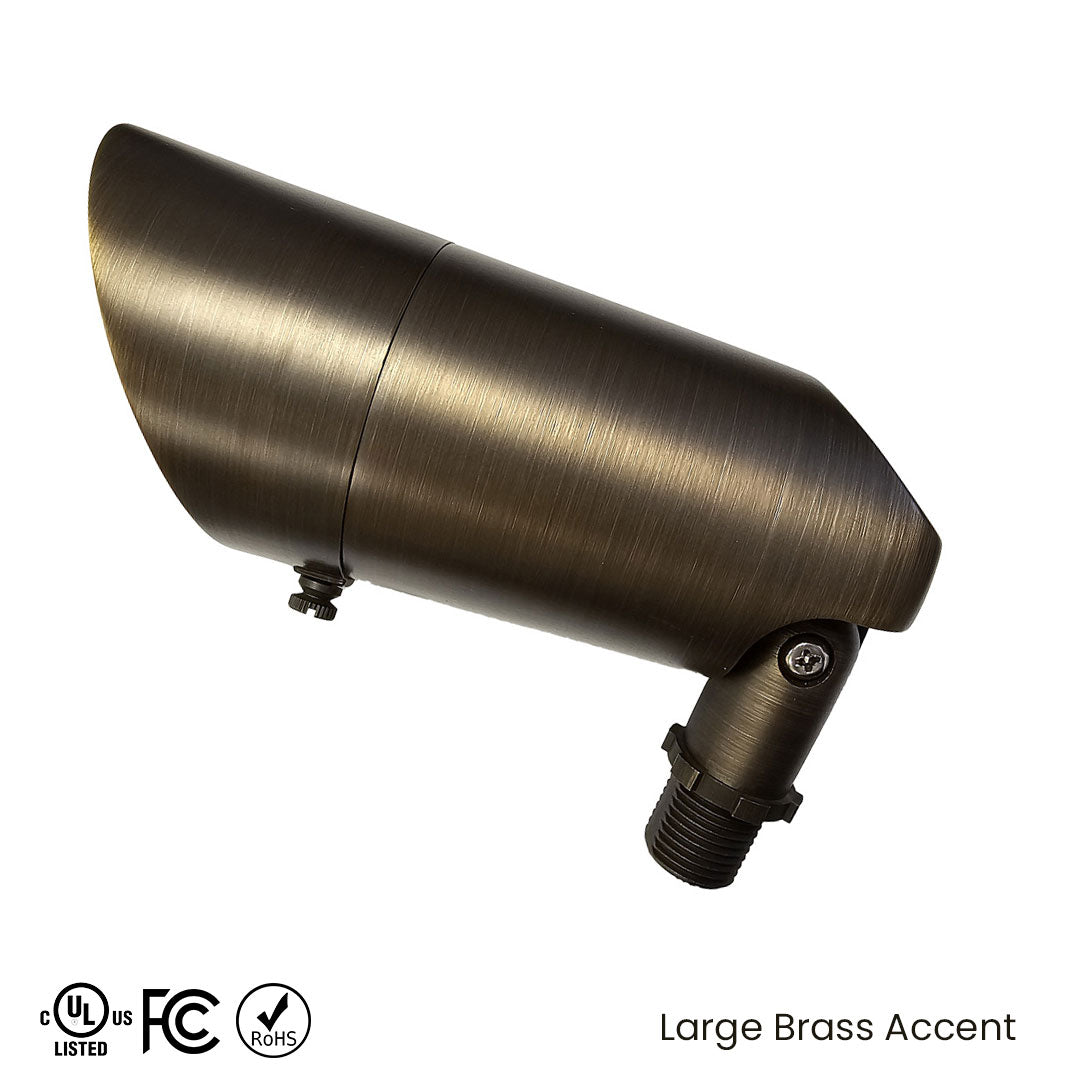

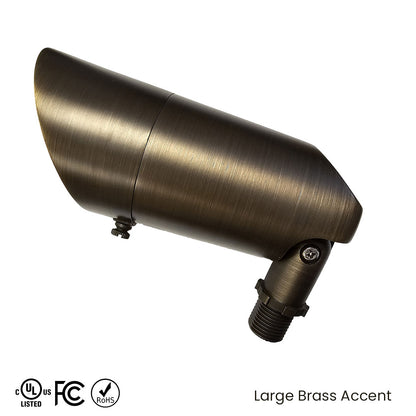

Large MSDPRO uplight/accent light made of solid die-cut brass. Adjust your wattage, lumen output and color temperature via patent-pending Magnetic Step Dimming (MSD) functionality. Using the provided magnetic-key, easily switch between three lumen outputs: 1100lm, 1300lm, or 1495lm, and two color temperatures: 2700K or 3000K. The Large MSDPRO is available in three beam spread angles of 20°, 40° or 65°. IP67 rated. Comes standard with a 4.9 foot lead wire, MSDPRO magnetic-key, 8.75" ground stake and a 10 year manufacturer warranty.

Default Settings Out of Box: 20W, 1300lm, 3000K

SKU: 702-UPLIGHT-MSDPRO-LARGE-2700/3000-40-BS

  • Watts: 16W, 20W or 23W
  • Volt Amps: 21.8 / 27 / 30 VA
  • Color Temperature: 2700K/3000K Adjustable
  • Beam Spread: 40 degrees
  • Operating Range: 9-15 VAC/DC
  • Lumens: 1100-1495 lm
  • CRI: 80+
  • IP Rating: 67
  • Lamp Life: 50,000 hours
  • Finish: Antiqued Brass
View full details
  • Part number for ordering:

    702-UPLIGHT-MSDPRO-LARGE-2700/3000-40-BS

  • Warranty:

    10 Years

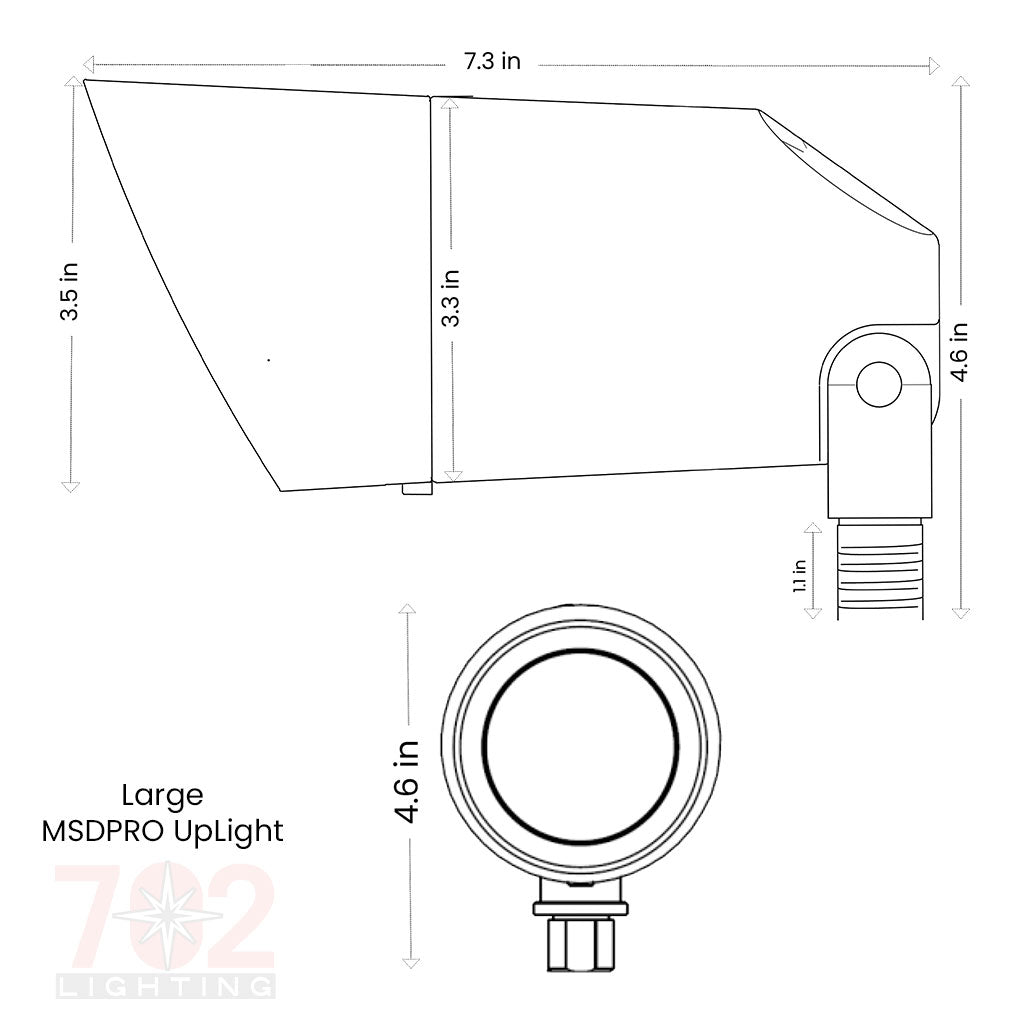

    Dimensions • Weight

    7.3" L x 4.6" H • 8 lbs

  • Includes:

    1 Large MSDPRO/CCT Uplight

    1 MSDPRO Magnetic Key

    1 Ground Stake (8.75")

    4.9' Lead Wire

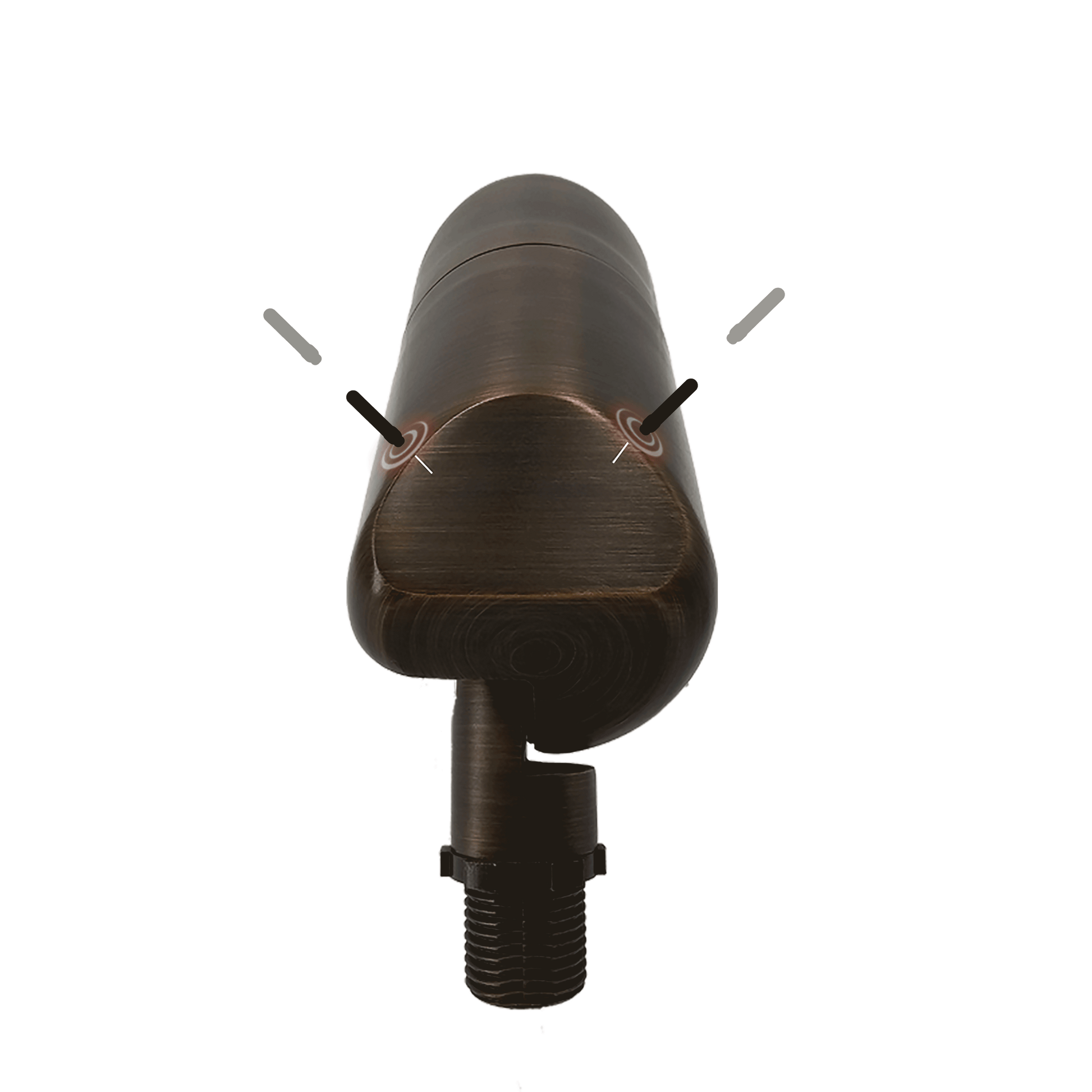

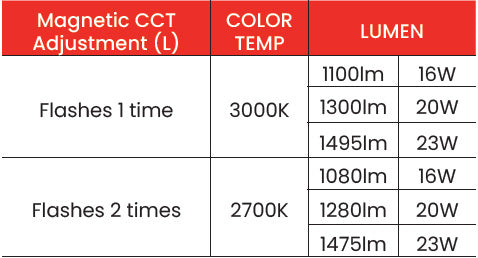

  • How to use Magnet to change CCT

    To adjust color temperature, place the magnet in the area just above the etched line on the LEFT side (with the fixture facing away from you) and hold for 1.5 seconds. Light will flash if successful.
    To adjust again, repeat, pausing for 1.5 seconds in between settings.

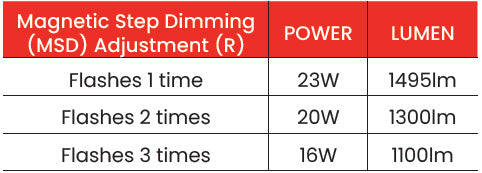

  • How to use Magentic Step Dimming to change your lamp wattage:

    To adjust wattage, place the magnet in the area just above the etched line on the RIGHT side (with the fixture facing away from you)and hold for 1.5 seconds. Light will flash if successful.

    To adjust again, repeat, pausing for 1.5
    seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
