702 Lighting

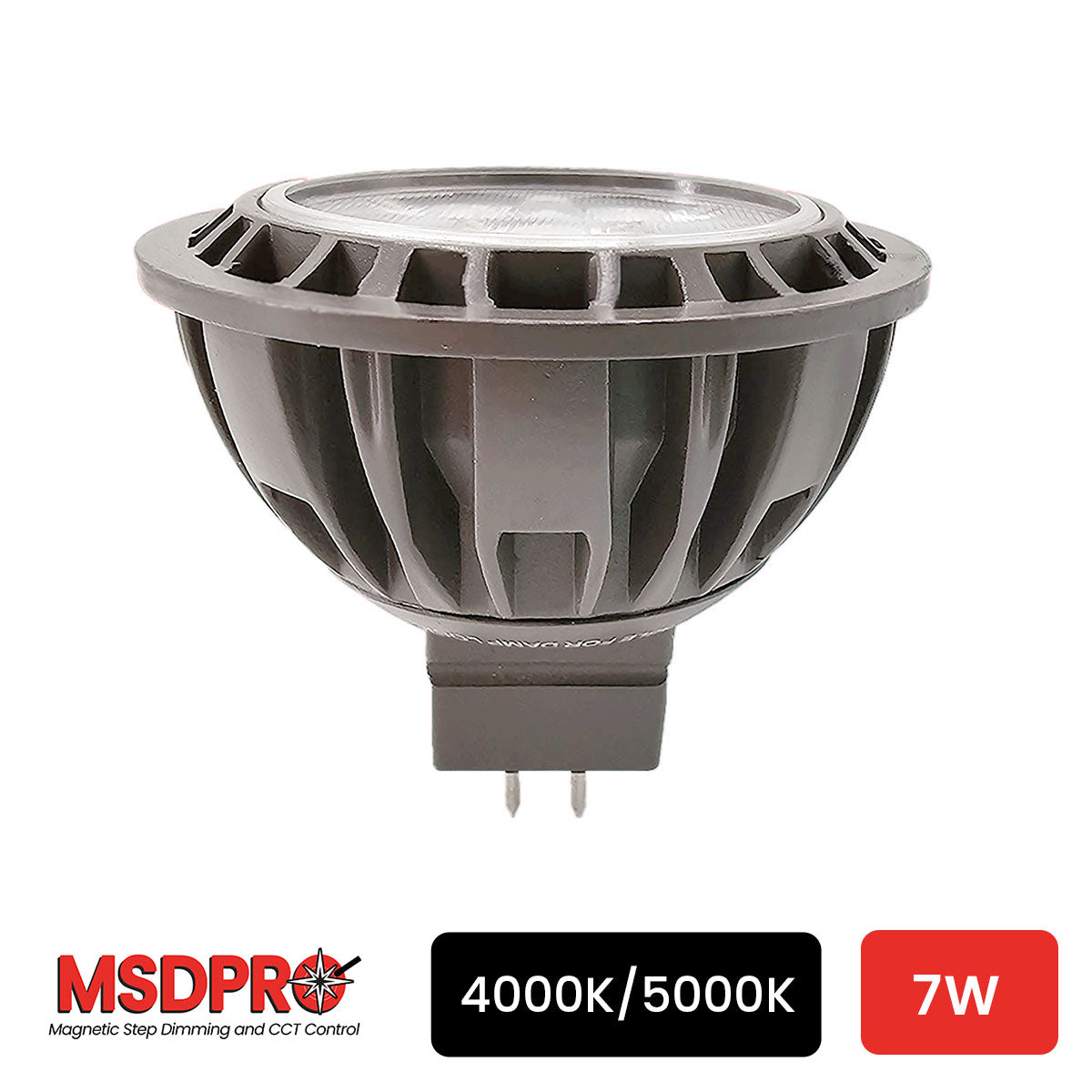

MSDPRO/CCT Adjustable 7W MR16 LED • 4000K/5000K

MSDPRO/CCT Adjustable 7W MR16 LED • 4000K/5000K

MSDPRO MR16 LED Lamp

Beam Spread

Adjust your color temperature between 4000K or 5000K, with just the tap of a magnet, via patent-pending MSDPRO/CCT functionality.  Suitable for dry or damp locations and in totally enclosed luminaries. Backed by five-year warranty. Includes 1 magnet for adjustments. Available in beam spreads of 20, 40, 60 and 120 degree beams.

Default color temperature is 5000K.  Pre-programming available by request. Charges and extended lead times may apply.

SKU: 702-MR16-MSDPRO-7W-4000/5000-XX

Make sure to choose a beam spread before adding to your quote!

Lamp Specs:

  • Watts: 7W
  • Volt Amps: 10.8 VA
  • Color Temperature: 4000K/5000K Adjustable
  • Beam Spread: 20, 40, 60 or 120 degrees
  • Operating Range: 8-25 VAC/DC
  • Lumens: 700 lm
  • CRI: 80+
  • Lamp Life: 50,000 hours
View full details

More Product Information

  • Part number for ordering:

    702-MR16-MSDPRO-7W-4000/5000-

  • Warranty:

    5 Years

  • Includes:

    1 MSDPRO Series MR16 LED Lamp

    2 MSDPRO Magnetic-Keys, per box of 10

    [or 1 per order, minimum]

  • How to use Magnet to change CCT

    To adjust color temperature, tap
    magnet over the “C” marking and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5
    seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet

  • MR16 Stencil Cut-Out

    Download our custom sized stencil to fit over the lamp face of our MR16 lamps to avoid eye contact with the LEDs when adjusting your CCT.

    Download MR16 Stencil

Video: How do I adjust the CCT on my 7W MR16 MSDPRO Lamp?
