G4 Drop-In Path Light Module

G4 Drop-In Path Light Module

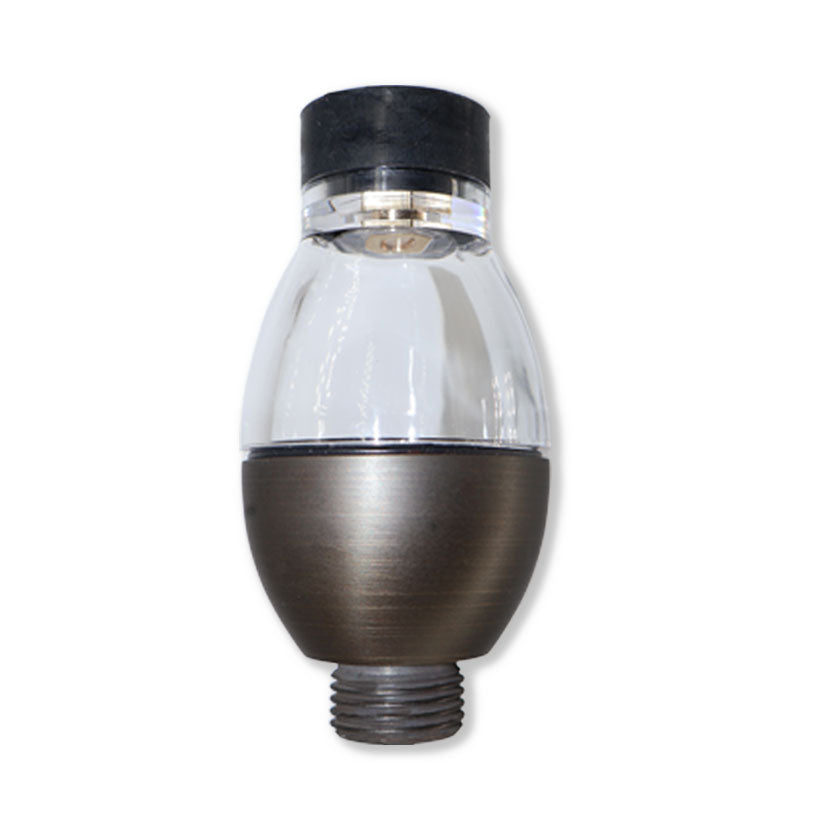

Drop-in Path Light Module

Drop-in path light module compatible with G4 base bi-pin lamps, with a 3 watt LED max. Provides up to a full 360° light spread. Our G4 module seamlessly connects to all 702 Lighting risers and hats, has a matching Antique Brass finish and is rated for wet locations. Complete your path light by pairing it with our brass risers (CRAIG or BONO) and brass path hats (GIGI or KOBE).

Our G4 drop-in module is UL listed when paired with our registered risers and hats to make a complete path light unit.

SKU: 702-PATH-G4-MOD1-BS

Looking for a complete path light kit? See Path Light Kits

  • Watts: 2W or 3W
  • Beam Spread: up to 360 degrees
  • Operating Range: 9-25 VAC/DC
  • Finish: Antiqued Brass
  • Warranty: 10 Years
View full details

More Product Information

  • Part number for ordering:

    PATH-G4-MOD1-BS

  • Warranty:

    10 Year Manufacturer Warranty

  • Includes:

    1 MSDPRO LED Path Light Module

    1 MSDPRO Magnetic-Key

    4.9' Lead Wire

    1/2" NPT Male Thread

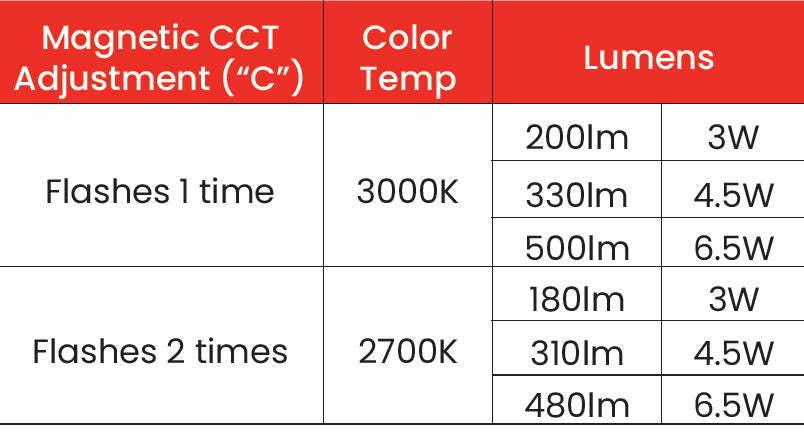

  • How to use Magnet to change CCT

    To adjust color temperature, place the magnet just below the “C” found on the side of the module and hold for 1.5 seconds. Light will flash if successful.

    To adjust again, repeat, pausing for 1.5 seconds in between settings.

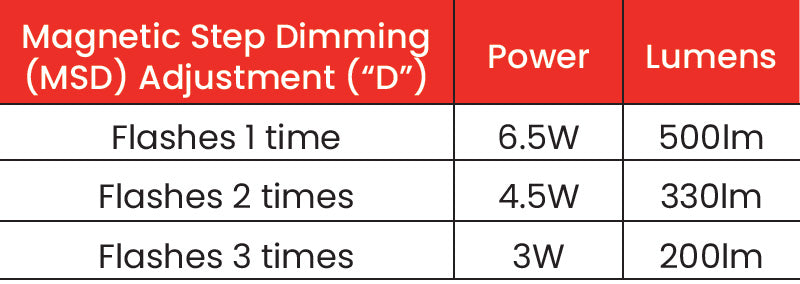

  • How to use Magentic Step Dimming to change your lamp wattage:

    To adjust wattage, place the magnet just below the “D” found on the side of the module and hold for 1.5 seconds. Light will flash if successful.

    To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
