702 Lighting

ALFRED 150W Transformer

ALFRED 150W Transformer

A 150W low voltage landscape lighting transformer with patented in-app voltage switching between 12V and 15V.  No moving wires!

In App Voltage Swap - Voltage Transformer

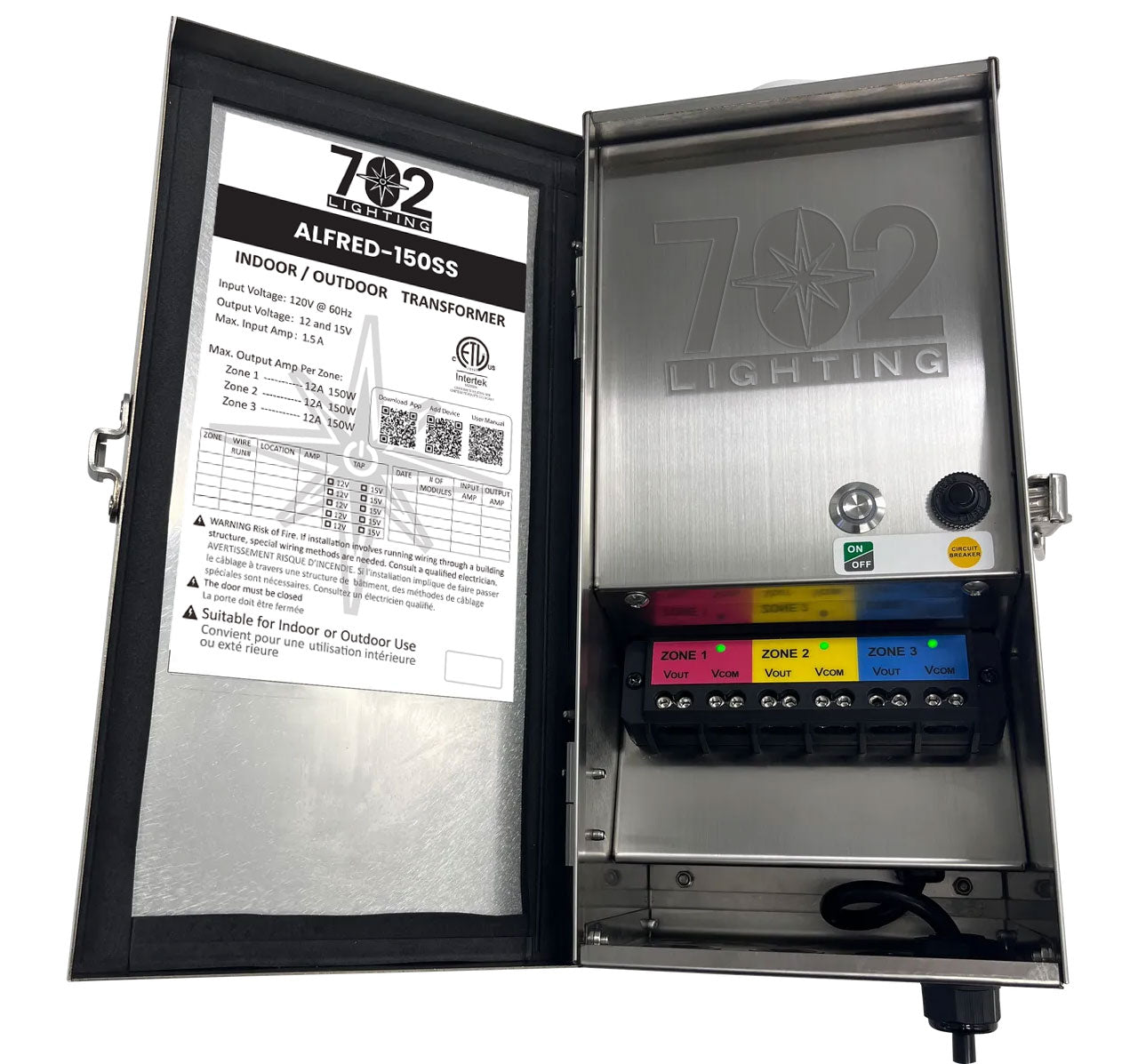

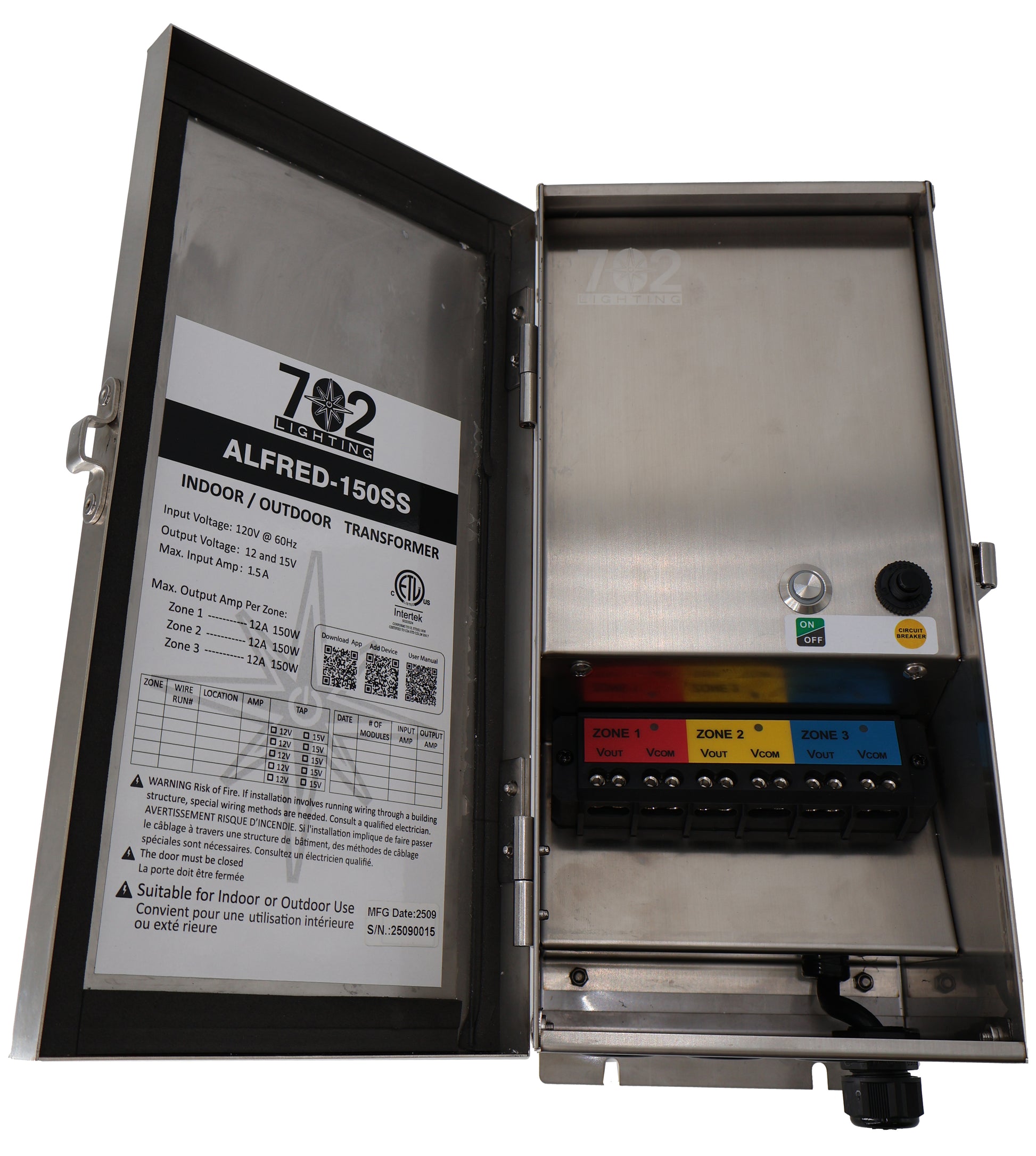

The ALFRED-150SS provides up to 150 watts of power in a compact stainless steel package. Includes Wi-Fi and Bluetooth connectivity and a free app, where you can swap voltage outputs between 12V and 15V, through patented technology*. Using the app, also control up to three zones, set timers, and get input and output data readings from your power supply.

  • Watts: 150W Max
  • Input Amps: 1.5A
  • Output Amps: 12V --> 12.5A, 15V -->10A
  • Zones: Up to 3
  • Operating Range: 100V-125V, 60hz
  • Output Voltage: 12V or 15V - Switchable in the App!
  • Wireless Features: Bluetooth & WiFi
  • Timer: Manual & Astronomical App Controlled

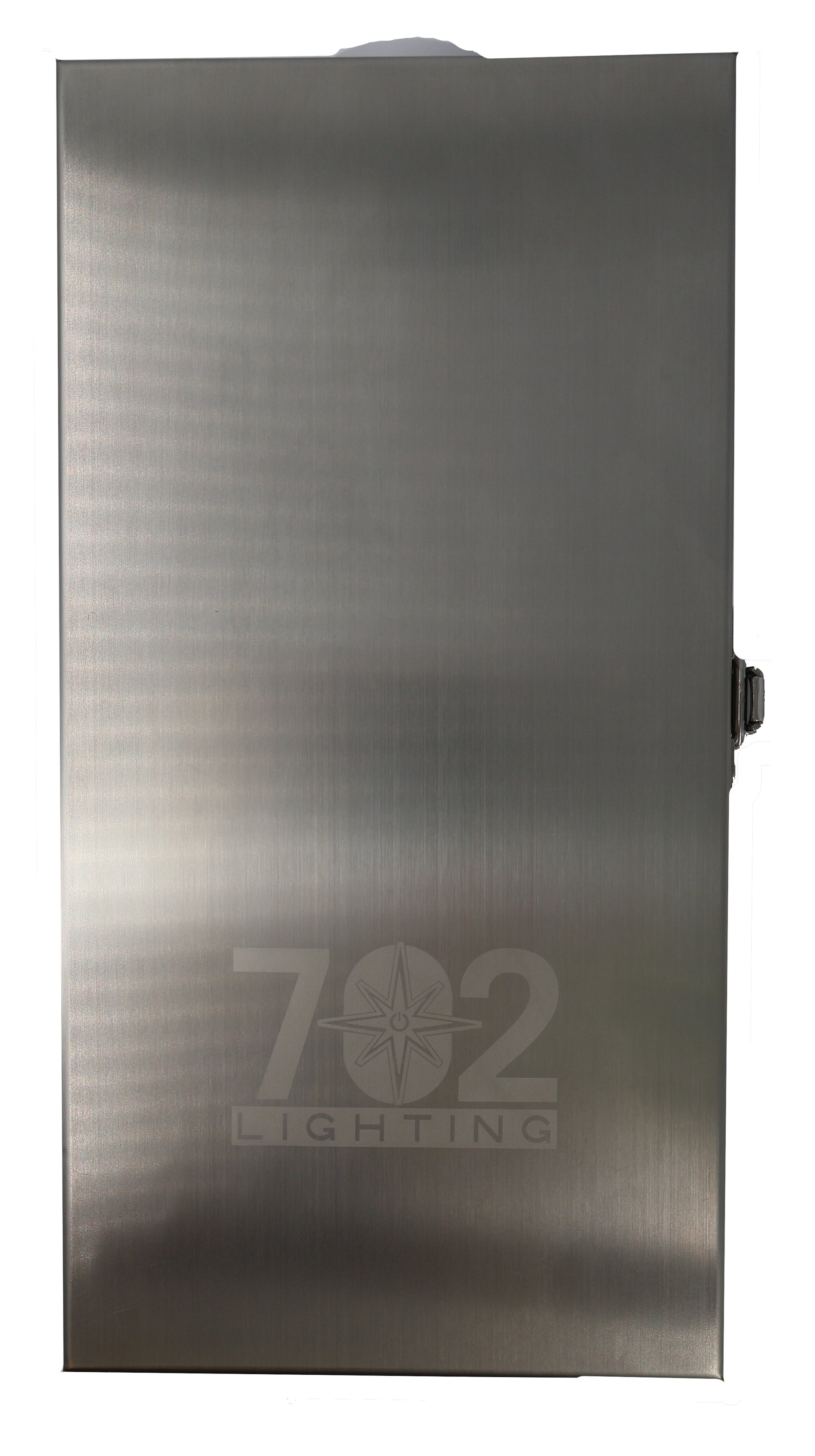

  • Finish: Stainless Steel
  • IP Rating: IP64 Weatherproof
  • App Provided Data: Voltage, Current, Power, and KWH
  • Weight: 15.4lbs
View full details

More Product Information

  • View or Download Instructions

    ALFRED Setup Instructions

  • Includes:

    1 - Low Voltage Transformer

    •

    Part number for ordering:

    TRANS-ALFRED-150SS

  • Warranty:
    5 Years Electrical

    •

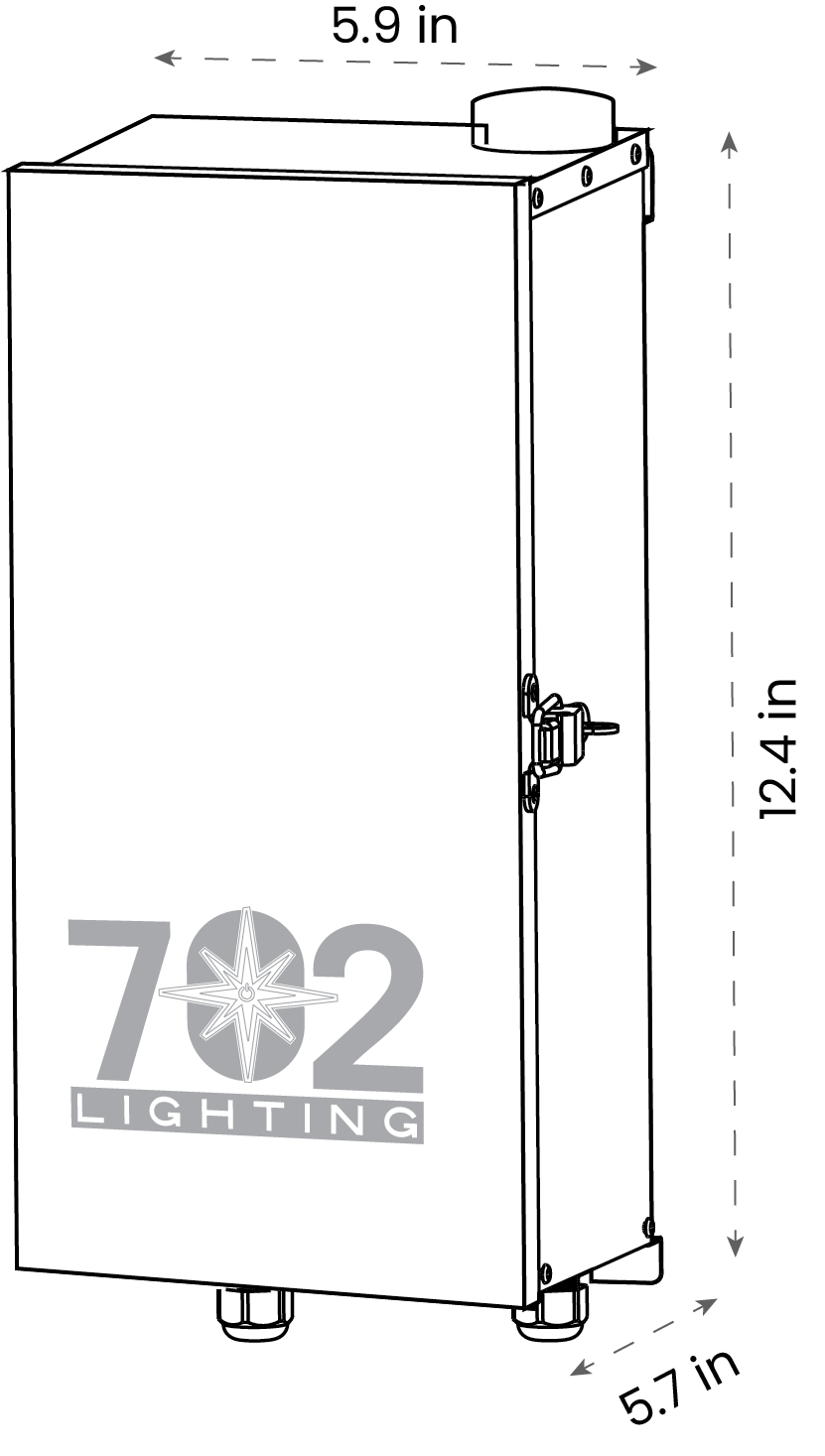

    Dimensions:

    ALFRED 150W & 300W

    5.9" W x 12.4" H x 5.7" D

    •

    ALFREDX 150-450W

    7.5" W x 16.3" H x 6.5" D

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
