MSDPRO / CCT Adjustable LED Path Light Module • 2700/3000K

MSDPRO / CCT Adjustable LED Path Light Module • 2700/3000K

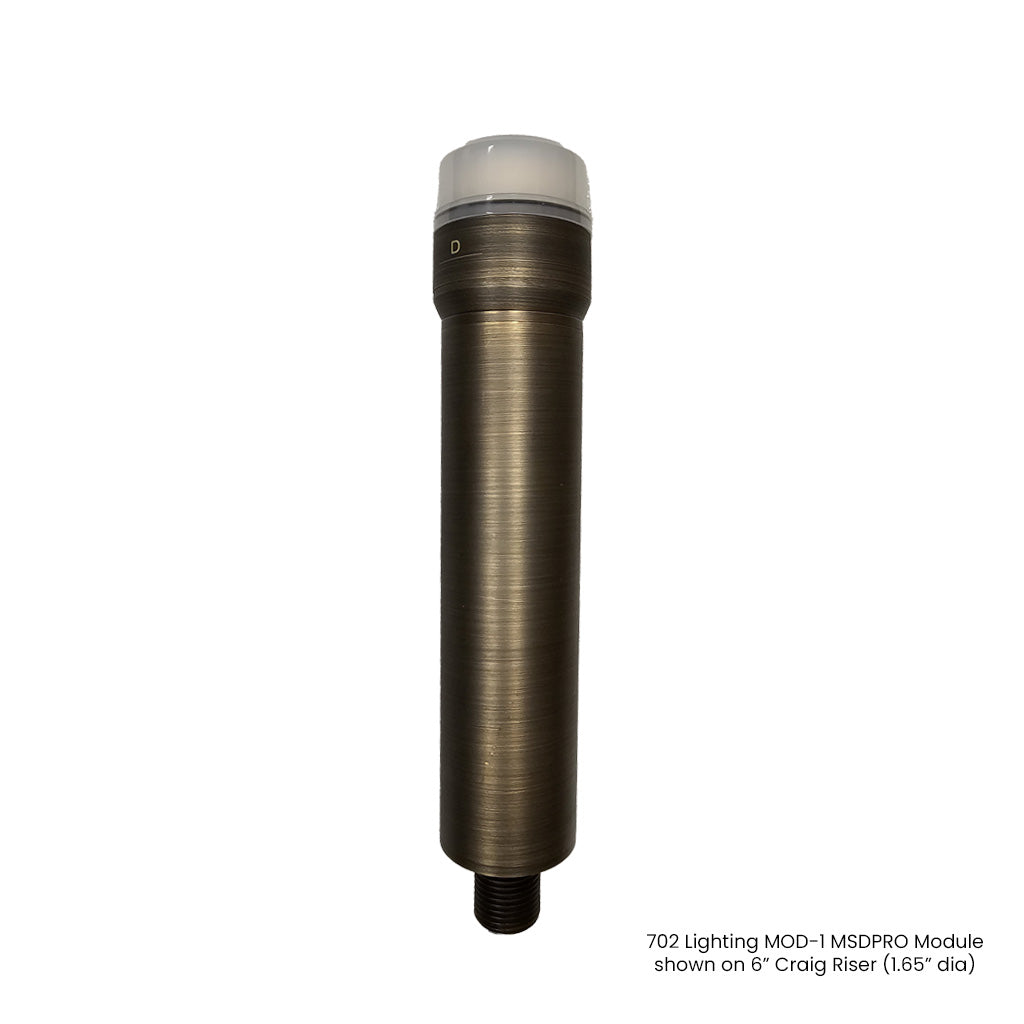

MSDPRO LED Path Light Module

MSDPRO/CCT adjustable integrated path light module with our patent-pending Magnetic Step Dimming  (MSD) functionality that allows you to adjust your wattage/lumen outputs and adjust your color temperature output with the simple tap of a magnetic-key. No screws, no screwdrivers. Using the provided magnet, easily switch between three lumen outputs: 200m, 330lm, or 500lm, and two color temperatures: 2700K or 3000K. Provides a full 360° beam spread. Comes with 10 year manufacturer warranty.

Default Settings Out of Box: 4.5W, 3000K

SKU: 702-PATH-MSDPRO-MOD1-6W-2700/3000-BS

Looking for a complete path light kit? See Path Light Kits

  • Watts: 3W, 4.5W or 6.5W
  • Volt Amps: 4.2 / 7 / 9.8 VA
  • Color Temperature: 2700K/3000K
  • Beam Spread: 360 degrees
  • Operating Range: 9-25 VAC/DC
  • Lumens: 180-500 lm
  • CRI: 80+
  • Lamp Life: 50,000 hours
  • Finish: Antiqued Brass
  • Warranty: 10 Years
View full details

More Product Information

  • Part number for ordering:

    702-PATH-MSDPRO-MOD1-6W-2700/3000-BS

  • Warranty:

    10 Year Manufacturer Warranty

  • Includes:

    1 MSDPRO LED Path Light Module

    1 MSDPRO Magnetic-Key

    4.9' Lead Wire

    1/2" NPT Male Thread

  • How to use Magnet to change CCT

    To adjust color temperature, place the magnet just below the “C” found on the side of the module and hold for 1.5 seconds. Light will flash if successful.

    To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • How to use Magentic Step Dimming to change your lamp wattage:

    To adjust wattage, place the magnet just below the “D” found on the side of the module and hold for 1.5 seconds. Light will flash if successful.

    To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
