702 Lighting

MSDPRO / CCT Adjustable PAR36 LED bulb, 7W, 11W or 15W, 2700/3000K, 60° beam

MSDPRO / CCT Adjustable PAR36 LED bulb, 7W, 11W or 15W, 2700/3000K, 60° beam

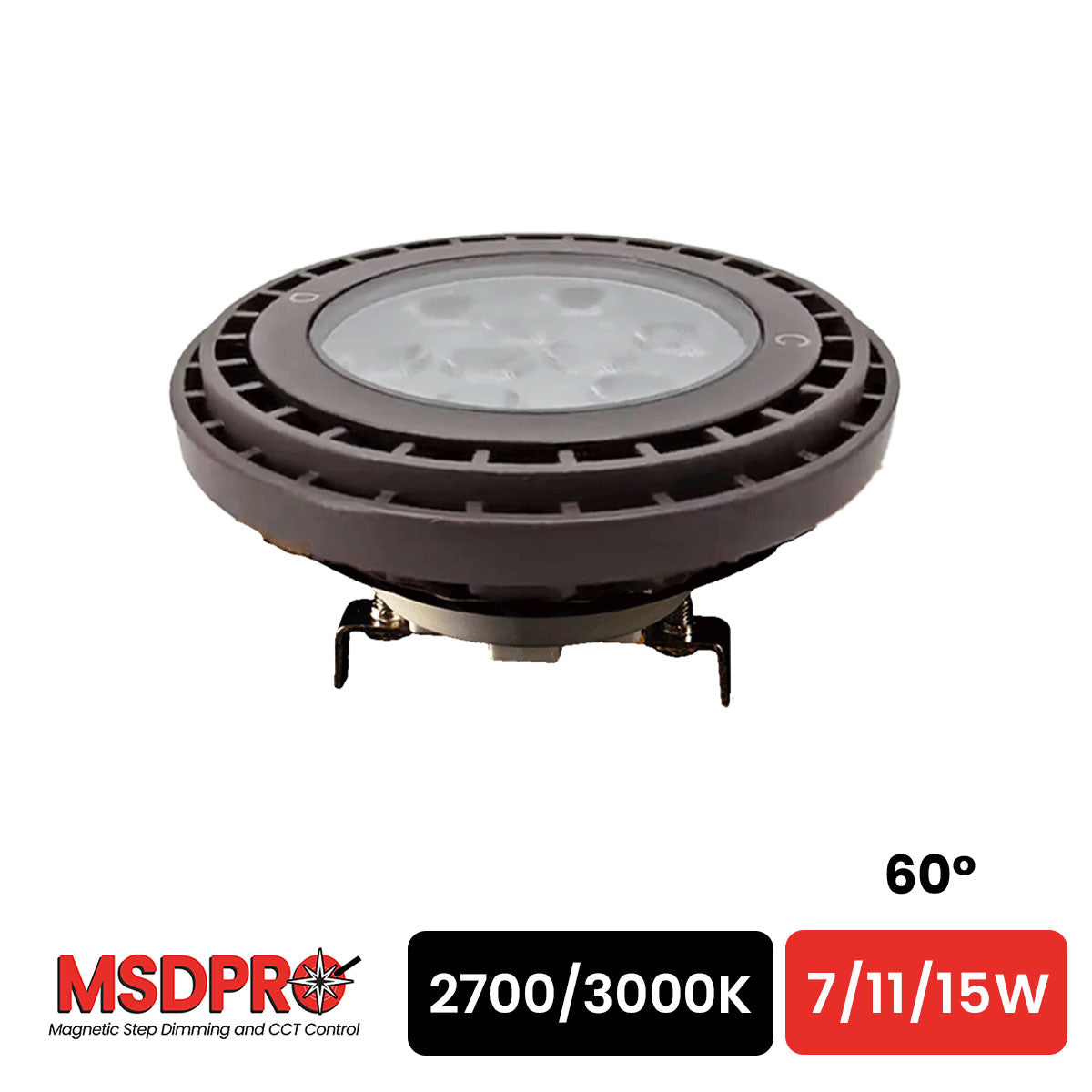

MSDPRO PAR36 LED Lamp

PAR36 LED Lamp with variable CCT, wattage and lumen outputs via patent-pending Magnetic Step Dimming functionality. This PAR36 is adjustable between 7W, 11W or 15W options and color temperatures of 2700K or 3000K. Suitable for dry or damp locations and in totally enclosed luminaries. Backed by a five-year warranty. Includes 1 magnet for adjustments.

Default setting on lamp is 15W/3000K.  Pre-programming available by request. Charges and extended lead times may apply.

SKU: 702-PAR36-MSDPRO-7/11/15W-2700/3000-60

PAR36 Lamp Specs:

  • Watts: 7/11/15W Adjustable
  • Volt Amps: 11.4/ 16.8/ 21.6 VA
  • Color Temperature: 2700K/3000K Adjustable
  • Beam Spread: 60 degrees
  • Operating Range: 10-25 VAC/DC
  • Lumens: 680-1500 lm
  • CRI: 80+
  • Lamp Life: 50,000 hours
View full details
  • Part number for ordering:

    702-PAR36-MSDPRO-7/11/15W-2700/3000-60

  • Warranty:

    5 Years

    Dimensions:

    4.4" x 2.3"

  • Includes:

    1 MSDPRO/CCT PAR36 LED Lamp

    1 MSDPRO Magnetic Key

  • How to use Magnet to change CCT

    To adjust color temperature, tap
    magnet over the “C” marking and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5
    seconds in between settings.

  • How to use Magentic Step Dimming to change your lamp wattage:

    To adjust wattage, tap magnet over the “D” marking and hold for 1.5 seconds. Light will flash if successful. To adjust again, repeat, pausing for 1.5 seconds in between settings.

  • Cut Sheet

    View or Download full product specifications

    View Product Spec Sheet
  • PAR36 Stencil Cut-Out

    Download our custom sized stencil to fit over the lamp face of our PAR36 lamps to avoid eye contact with the LEDs when adjusting MSD or CCT.

    Download PAR36 Stencil

How to adjust MSDPRO PAR36 lamp
